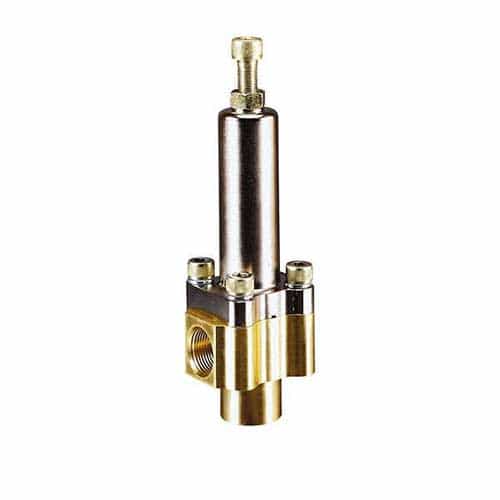

Hydra-Cell C62AABVSSEF Bypass 3/4 in. x 3/4 in. Pressure Regulator - 14 GPM
Brand:
Mfr. Model #:
C62AABVSSEF
KR Part #:
WPC62AABVSSEF
Weight:
4.00 lbs
Brass body bypass regulator valve for high-pressure water systems.
Technical Specifications
Max GPM: 14
Max PSI: 500
Max Temperature: 200 degrees F
Inlet Port: 3/4 inch
Product Description
Car Wash System Water Pressure Regulator
This Hydra-Cell C62AABVSSEF regulating bypass valve maintains a stable pressure level in your car wash or pressure washing system. Brass body valve operates at a maximum flow rate of 14 gallons per minute and 200 degrees Fahrenheit maximum temperature. Hookup ports include 3/4" NPT threads for both the inlet and outlet.
Details:
- 1-14 GPM flow rate range
- 3/4" NPT inlet and outlet ports
- Maximum temperature: 200° Fahrenheit
- 75-500 PSI
- Brass body construction
- Viton o-rings
- Stainless steel valve seats
- Stainless steel plungers
- Genuine Hydra-Cell part by Wanner Engineering
- Preferred mounting position is vertical with the adjusting bolt at the top
