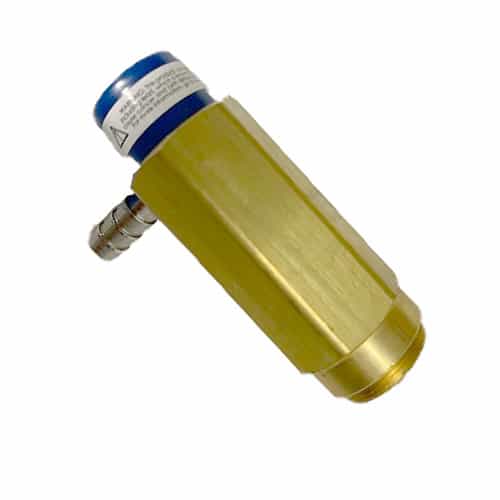

General Pump 100723 Cold Water Safety Relief Valve - 6 GPM, 6000 PSI

Brand:
Mfr. Model #:
100723
KR Part #:
GPP100723
Weight:
0.50 lbs
Out of Stock - Pre-Order Now
MSRP
$43.11
Now Only!
$16.54
Side discharge pressure relief valve with a 1/2" female NPT inlet and a 3/8" hose barb outlet on the side. 6 GPM flow rate and a 6000 PSI maximum pressure rating.



Technical Specifications

Max PSI: 6000
Max GPM: 6
Min PSI: 2000
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max Temperature: 150 degrees F

Product Description

Side Discharge Pressure Relief Valve

The General Pump 100723 Safety Relief Valve is a high-pressure relief valve that's ideal for cold water applications. This pressure regulating device maintains a safe environment and protects your equipment from damage. Ports include a 1/2" NPTF inlet and a 3/8" hose barb outlet on the side. Rated for pressure levels up to 6000 PSI.

Dimensions: 2.6" x .875"

Specifications:

  • Flow Rate: 6 GPM
  • Minimum Pressure: 2000 PSI
  • Maximum Pressure: 6000 PSI
  • Inlet: 1/2" FNPT
  • Outlet: 3/8" Hose Barb (on side)
  • Weight: .325 lbs.

Features:

  • One model fits all pressure - no spring to change
  • Reduced "Whistling" versus other brands
  • Highly accurate over the full range of pressure levels
  • Side end discharge
  • Fits any brand of pump (with compatible specifications)
  • Made in the U.S.A.
