Hanna-Compatible Switch

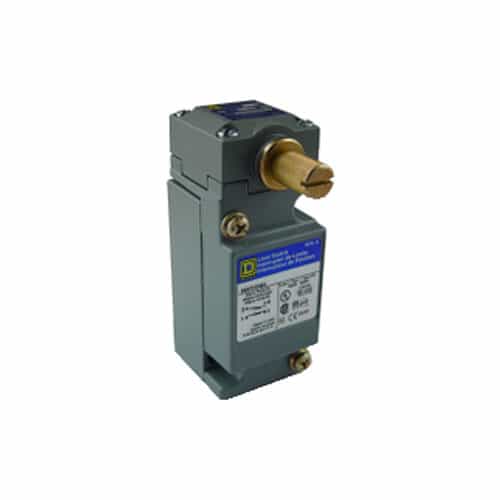

Square D by Schneider-Electric 9007C Type C limit switches are designed for heavy-duty industrial use in car wash conveyors, machine tooling applications, plastic molding, printing, textile production, and more. This switch has a modular, plug-in body style that makes future maintenance easy! Type C limit switches are operationally interchangeable with type B limit switches.

This particular model offers a large diameter shaft, Viton Quadring shaft seal, and direct opening normally closed contact that meets IEC 947-5-1 requirements for positive opening. Plus, its IP67 and NEMA 6P/13/4 ratings verify that this limit switch is suitable for use in wet environments, though it should not be continually submersed or subjected to direct high pressure spray.

Dimensions: 1.55" x 4.02" x 2.5"

• 600 volt
• 10 amp
• For use with Hanna car wash conveyor systems
• Temperature range: 20° to 185° Fahrenheit
• SPDT, DPDT, NEMA A600 contacts
• 1 slow break contact
• 4 snap action contacts
• Integral 5-pin mini-connector for electrical hookup
• Viton Quadring seal
• IP67 and NEMA 6P/13/4 rated
• Conforms to standards: IEC 947-5-1, UL508, C22-2-14-95, NEMA 250, IEC 60947, EN 60947-1, EN 60947-5-1
• Square D part #: 9007C54B2
• UPC: 78590150074
• Weight: 1.25 lbs.
