PNP Output Sensor

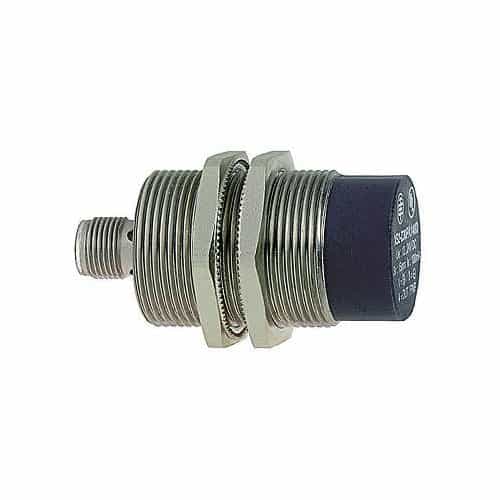

The Telemecanique OsiSense XS630B4PAM12 inductive proximity sensor is designed for general use and offers a discrete output signal. This sensor has a fixed body and nickel plated brass enclosure with a 22mm (0.87") nominal sensing distance. Thanks to the IP67/IP69K rating, it's great for use in a variety of applications including assembly machines, robotics, machining tools, packaging operations, conveyors, or food and beverage production.

This sensor is compatible with:

• Kleen-Rite part # STP135 PVC straight cordset (manufacturer model # XZCPV1141L2)

Length: 74mm (2.91")

• XS6 M30 sensor
• OxiSense XS line
• 22mm nominal sensing distance with frontal detection face
• 1 yellow status LED
• 3-wire design
• PNP discrete output on DC circuit
• M12, 4-pin electrical connector
• 48 V DC electrical connection
• M30 x 1.5 ISO thread - 41mm (1.61") total threaded length
• Ambient air temperature: -13°F to 158°F
• CSA and UL certified, CE Marked
• Telemecanique part #: XS630B4PAM12
• Weight: 0.32 lbs
