Telemecanique OsiSense XS630B1MAL2 Inductive Proximity Sensor - 62mm
Brand:
Mfr. Model #:
XS630B1MAL2
KR Part #:
STP2296
Weight:
0.45 lbs
Nickel plated brass sensor for general purpose use. Thanks to the IP68/IP69K rating, it's great for use in a variety of wet environments and applications including assembly machines, robotics, machining tools, packaging operations, conveyors, or food and beverage production.
Technical Specifications
Certifications: CSA, UL, CE Mark, IP68, IP69K
Max Temperature: 158 degrees F
Voltage AC: 24
Voltage DC: 24
Product Description
Discrete Output Sensor with 2M Cable

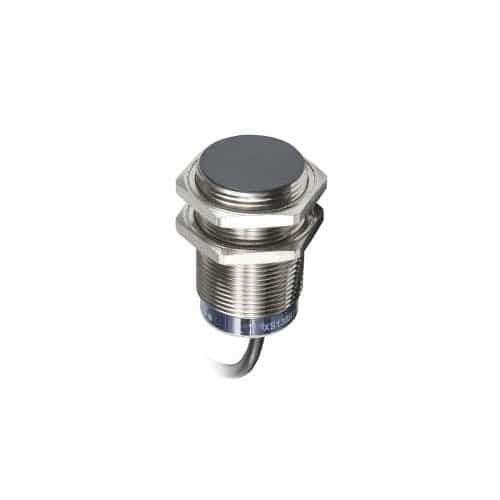

The Telemecanique OsiSense XS630B1MAL2 inductive proximity sensor is designed for general use and offers a discrete output signal. This sensor has a fixed body and nickel plated brass enclosure with a 15mm (0.59") nominal sensing distance.
Note: 2M cable included.
Length: 62mm (2.44")
- XS6 M30 sensor
- OxiSense XS line
- 15mm nominal sensing distance with frontal detection face
- 1 yellow status LED
- 2-wire design
- Cabled 24V AC/DC electrical connection
- 2 meter (6.56 foot) electrical connection cable with PvR insulation
- M30 x 1.5 ISO thread - 52mm (2.05") total threaded length)
- Ambient air temperature: -13°F to 158°F
- CSA and UL certified, CE Marked
- Telemecanique part #: XS630B1MAL2
- Weight: 0.45 lbs.
