NPN Output Sensor

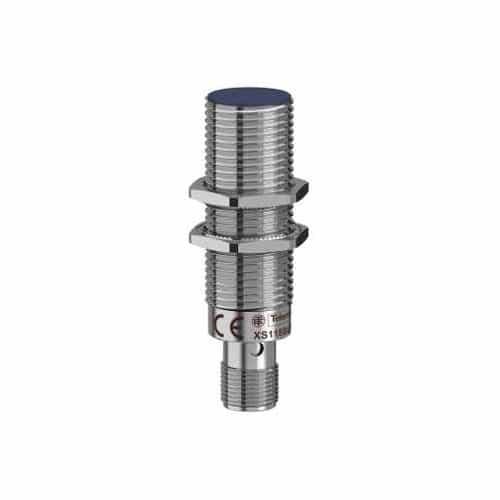

The Telemecanique OsiSense XS118BLNAM12 inductive proximity sensor is designed for general use and offers a discrete output signal. This sensor has a fixed body and nickel plated brass enclosure with a 5mm (0.19") nominal sensing distance. Thanks to the IP67 rating, it's great for use in environments where it may get wet, but will not be continually submerged or under high pressure spray. Also suitable for use on assembly machines, robotics, machining tools, packaging operations, conveyors, food and beverage production, and more!

This sensor is compatible with:

• Kleen-Rite part # STP135 PVC straight cordset (manufacturer model # XZCPV1141L2)

Dimensions: 18mm x 64mm (0.71" x 2.52")

• XS1 M18 sensor
• OxiSense XS line
• 5mm nominal sensing distance with frontal detection face
• 1 yellow status LED
• 3-wire design
• NPN discrete output on DC circuit

• 24 VDC electrical connection with reverse polarity protection required
• 4 pin M12 male electrical connector
• M18 x 1 ISO thread - 43mm (1.7") total threaded length)
• Ambient air temperature: -13°F to 158°F
• CSA and UL certified
• Telemecanique part #: XS118BLNAM12

• Weight: 0.08 lbs.
