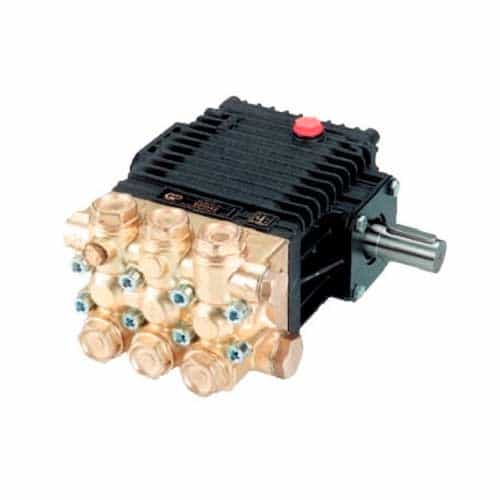

General Pump EZ4040S34 EZ Series 44S Pump - 4.0 GPM, 4000 PSI, Right Shaft
Brand:
Mfr. Model #:
EZ4040S34
KR Part #:
GPEZ4040S34
Weight:
18.00 lbs
GTIN:
682491141723
4000 PSI Triplex Plunger Pump featuring solid ceramic plungers, ideal for general pressure cleaning and washing applications. Features die-cast, anodized aluminum, oil-bath crankcase. One-piece plunger design keeps water from entering the crankcase.
Technical Specifications
RPM: 3400
Bore: 13 millimeter
Crankcase Capacity: 14 ounce
Max GPM: 4
Max Temperature: 165 degrees F
Inlet Port: 1/2 inch
Max PSI: 4000
Shaft Diameter: 24 millimeter
Stroke: 13 millimeter
Product Description
Triplex Plunger Pump
The General Pump EZ4040S34 is a solid shaft pump that offers superior plunger performance. Its one-piece plunger design keeps water from entering the crankcase and guards against thermal shock or capitation. The pump features a 24mm solid shaft that is able to be pulley-mounted, a forged brass manifold, and a die-cast anodized aluminum oil-bath crankcase with premium roller bearings.
Dimensions: 8.6" x 8.7" x 5.5"
- Maximum volume: 4.0 GPM
- Maximum pressure: 4000 PSI
- Maximum inlet pressure: 125 PSI
- Maximum inlet vacuum: flooded
- Maximum speed: 3400 RPM
- Bore: 0.512"
- Stroke: 0.512"
- Crankcase oil capacity: 14 oz
- Maximum temperature: 165° F
- Shaft diameter: 0.945"
- Weight: 18 lbs.
