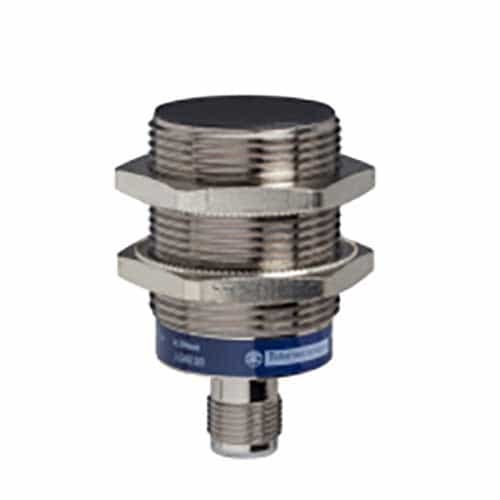

OsiSense XS1 Inductive Sensor

A general purpose inductive proximity sensor with nickel plated brass construction for durable use. Ideal for detecting mobile equipment. Added LED status indicator facilitates convenient use. Schneider sensors boast high reliability and are simple to install and configure!

Size: 2.17" (55 mm)

Nominal Sensing Distance: 0.59" (15 mm)

Thread Type: M30 x 1.5

Specifications:

• Body Type: Fixed
• Flush mountable
• Discrete output signal
• 3-wire
• Discrete Output Function: 1 NO
• Circuit: DC
• Discrete Output Type: NPN
• M12 M connector, 4 pins
• Voltage: 12-24V DC, reverse polarity protection
• Switch Capacity (in mA): <= 200 mA, overload and short-circuit protection
• Frontal detection face
  • PPS material
• Enclosure: Nickel plated brass
• Operating Size: 0-0.47", 0-12 mm
• Differential: 1-15% of Sr
