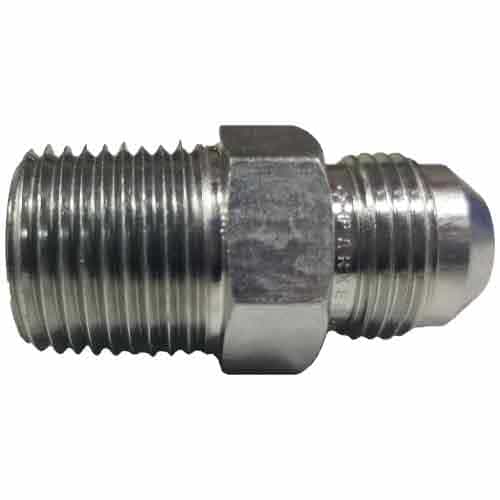

Parker 8-8 FTX-S Steel Triple-Lok 37 Degree Flare JIC Tube Fitting - 1/2 Inch MNPT JIC X 1/2 Inch MNPT

Brand:
Mfr. Model #:
8-8 FTX-S
KR Part #:
PLF591S
Weight:
0.35 lbs
Usually Ships in 2 Weeks
MSRP
$7.64
Now Only!
$3.66
This Triple-Lok fitting is made with steel and a nitrile O-ring. Used to create leak free metal to metal connections. Handles a maximum pressure of 6000 PSI.



Technical Specifications

Max PSI: 6000
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch

Product Description

1/2" JIC Triple-Lok Fitting

The Parker 8-8 FTX-S is a Triple-Lok fitting designed with a 1/2" MNPT 37 Degree JIC Flare connection and a 1/2" MNPT connection. Used applications involving high pressure hydraulics. Creates reliable leak-free metal to metal connections. Steel construction for strength. Engineered to withstand a maximum pressure of 6000 PSI. Inside is an O-ring made with 90 Duro Nitrile.

Specifications:
  • Connection Type: 37° Flare, Tube to SAE-ORB
  • Specifications Met: SAE J514
  • Maximum Dynamic Pressure: 6000 psi
  • Shape: Straight
  • Connection 1: 1/2" MNPT 37° JIC Flare
  • Connection 2: 1/2" MNPT
  • O-Ring Material: 90 Durometer Nitrile
  • Body Material: Steel
  • Weight:0.35 lbs.
