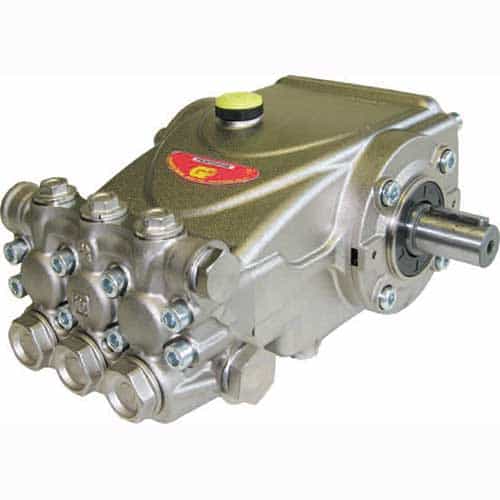

General Pump PEHT2214S Right Shaft Plunger Pump - 4GPM 3000 PSI

Brand:
Mfr. Model #:
PEHT2214S
KR Part #:
GPEHT2214SR
Weight:
22.80 lbs
GTIN:
682491128472
Availability:
1
Low Stock Warning
MSRP
$2,136.60
Now Only!
$708.28

Manuals

This powerful pump features a right shaft and a stainless steel manifold to resist corrosion. Output of pressures up to 3000 PSI, with a maximum flow of 4 GPM.



Technical Specifications

RPM: 950
Bore: 22 millimeter
Horsepower: 5.2
Inlet Port: 1/2 inch
Max GPM: 4
Max PSI: 3000
Shaft Diameter: 24 millimeter
Stroke: 14 millimeter
Max Temperature: 185 degrees F

Product Description

Right Shaft Ceramic Plunger Pump

The General Pump Platinum Series PEHT2214S Emperor right shaft plunger pump is designed for rigorous, long term use at your commercial car wash. This pump features a nickel plated, forged stainless steel manifold and ceramic plungers, all designed to handle high temperatures, pressures, and chemicals with ease.

Dimensions: 10.4" x 8.8" x 5.4"

  • Right shaft
  • Pump speed: 4 gallons per minute
  • Low and high pressure seals with dynamic low pressure seal retainer
  • Ceramic plungers
  • Nickel plated crankcase
  • Heavy Duty tapered roller bearings
  • Maximum pressure: 3,000 PSI
  • Minimum inlet pressure: 3 feet of water
  • Maximum inlet pressure: 125 PSI
  • Maximum RPM: 950
  • Horespower: 5.2 EBHP
  • Oil capacity: 22 oz.
  • Weight: 21 lbs.

UPC:682491128472
