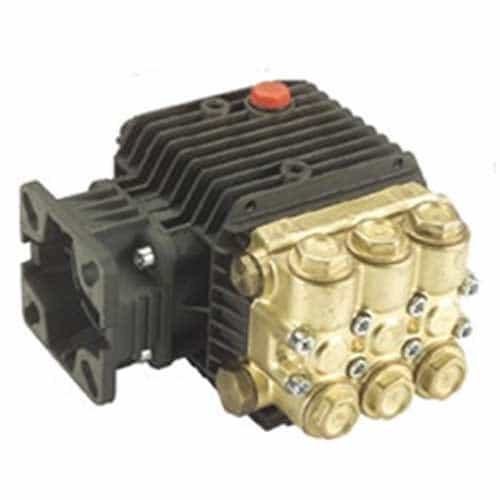

General Pump TT9111L TT Series 51 Solid Shaft 3.0 GPM, 1500 PSI (Left Shaft)

Brand:
Mfr. Model #:
TT9111L
KR Part #:
GPTT9111L
Weight:
12.00 lbs
GTIN:
682491142300

Call For Availability

MSRP
$890.49
Now Only!
$304.07

The General Pump TT9111L is the left-handed version of the TT9111. It's a solid shaft triplex plunger pump offering 3 GPM.




Technical Specifications

Bore: 18 millimeter
Horsepower: 3.1
Inlet Port: 3/8 inch
Max GPM: 3
Max PSI: 1500
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 9.4 millimeter

Product Description

TT Series 51 Solid Shaft

The TT9111L is an ideal choice for cleaning, RO, and misting applications. It's a General Pump TT Series 51 triplex plunger pump that comes with a 24 mm solid shaft for simple pulley mounting or direct drive with flex coupler and bell housing. Numerous specifications stand out when reviewing this pump such as 3 GPM, 1750 RPM, 1500 PSI, and 3.1 horsepower.

Pump Dimensions: 7.0" x 6.9" x 5.1"

Shaft Diameter: .945" / 24 mm

Pump Features:

  • PSI: 1500
  • RPM: 1750
  • GPM: 3
  • Horsepower: 3.1
  • Oil-bath crankcase
  • Solid ceramic plungers w/ continuously lubricated packings
  • Original Interpump unitized, stainless steel, K01 inlet and outlet valves
  • Left Shaft
