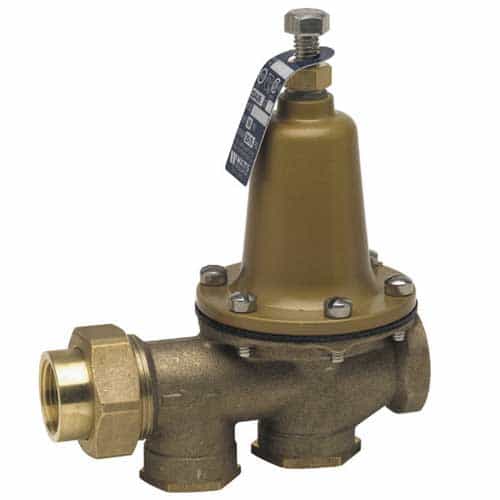

Watts LF25AUB-Z3 Lead Free Water Pressure Reducing Valve 3/4"
Brand:
Mfr. Model #:
LF25AUB-Z3 3/4" (0009257)
KR Part #:
RE2512
Weight:
2.90 lbs
GTIN:
098268329704
This valve is used to reduce incoming water pressure to protect the plumbing system components and reduce incoming water consumption. Lead free body. Temperature resistant diaphragm that handles hot water.
Product Description
Lead-Free Water Pressure Reducing Valve
This valve has a lead free copper silicon alloy body, union inlet connection, stainless steel strainer, and high-temperature resistant reinforced diaphragm for hot water. It has an adjustable pressure range and is serviceable in-line.
Specifications:
- Size: 3/4"
- Max pressure: 300 PSI (21 bar)
- Adjustable reduced pressure range: 25-75 PSI
- Standard pressure setting: 50 PSI
- UPC: 098268329704
- Made in the USA
Product Reviews
Frequently Asked Questions
Question:My self serve bay has 2 Cat 310 pumps, and 3 bays of wash liquids. I believe I am having trouble with the pressure reducing valve, because the flow is so great through my pumps that the water coming in goes through the solenoids including the weep solenoid and backflows into the tanks. My current valve is a Honeywell Braukman PN25 D07-1. I don't think this one will work, it's 3/4" and I need 1". But anyway, what is the normal operating pressure for a wash of this configuration? The local water company says their pressure in the lines in that area is 60-65 lbs. Thanks.
-
Don
(02/17/2020)
Response:Yes, usually typical inlet pressure is around 45-60 PSI.
