Aquatec 5512-1E12-J586 Diaphragm Pump w/ 60 PSI Pressure Switch

Brand:
Mfr. Model #:
5512-1E12-J586
KR Part #:
ATP1040
Weight:
9.36 lbs
Availability:
3
Low Stock Warning
MSRP
$224.49
Now Only!
$104.98
3.2 GPM diaphragm pump, ideal for beverage and drinking water delivery applications. Made in the USA.



Technical Specifications

Max GPM: 3.2
Max PSI: 60
Voltage AC: 115
Max Temperature: 140 degrees F
Inlet Port: 1/2 inch

Product Description

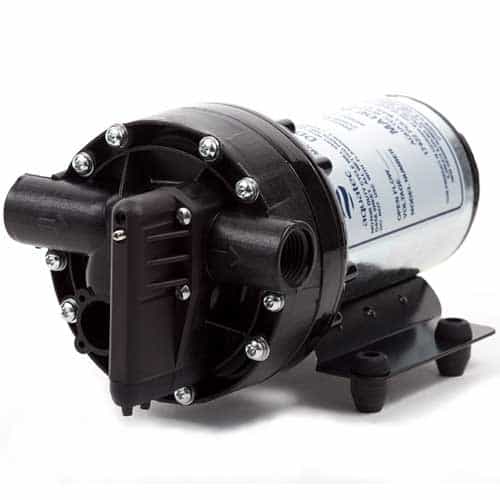

Series 550 Water Delivery Pump

The ideal choice of diaphragm pump for beverage and drinking water delivery applications. Pump motor comes equipped with a thermal protector for safe use and limiting motor shell temperature. Reliable and durable performance and long-lasting service life come standard with Aquatec pumps.

Dimensions: 9.05" L x 5" W x 4.58" H

  • GPM: 3.2
  • Voltage: 115 VAC
  • Leads: 14 AWG, 12" Long
  • Ports: 1/2" NPT Female Thread
  • Prime: 10 feet
  • PSI: 60
  • Materials:
    • Housing: Polypropylene
    • Valves: EPDM
    • Diaphragm: Santoprene
    • Fasteners: Stainless steel
  • Liquid Temperature: 140° F Max
  • Pump Design: 5 chamber diaphragm
    • Self Priming
    • Capable of being run dry
  • Includes 60 PSI pressure switch and 12" motor leads
  • NSF018 Drinking Water, UL778, ROHS Compliant
