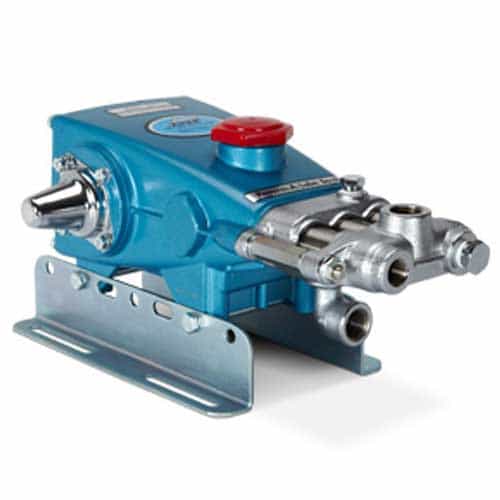

CAT Pumps 430.3000 High Temperature Pump 5 GPM, 1000 PSI
Brand:
Mfr. Model #:
430.3
KR Part #:
PU00430.3000
Weight:
16.00 lbs
Usually Ships in 2 Weeks
The CAT 430 brass manifold pump is one of the most popular pumps for self-service bays! 4 Frame triplex piston pump perfect for high temperature applications. Up to 5.0 GPM, at pressures up to 1000 PSI. Brackets are not included with this pump.
NOTE: This pump does NOT come with oil
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 21 ounce
Max GPM: 5
Shaft Diameter: 16.5 millimeter
Stroke: 19.5 millimeter
RPM: 1040
Max Temperature: 190 degrees F
Max PSI: 1000
Inlet Port: 1/2 inch
Product Description
Powerful High-Temp Car Wash Pump
The CAT 430.3000 4 Frame triplex piston pump is perfect for use in car wash bays! Triplex Uniflow design provides continuous forward liquid flow for smooth operation. Chrome-plated 304 Stainless cylinders and sleeves provide long operating life with mild liquids (5PH-9PH). High-temp seals provide greater temperature resistance for use in hot-water applications.
Dimensions: 12.56" x 8.8" x 5.33"
Features:
- Uniflow design features mechanically actuated inlet valve for continuous forward flow and strong suction
- 304SS Valve assemblies
- Low RPM is designed for belt drive
- Solid shaft
- High-temperature seals
Specifications:
- Maximum Flow: 5.0 GPM
- Pressure Range: 100 - 1000 PSI
- Speed: 1040 RPM
- Max liquid temp: 190° F
- Inlet port: 1/2" NPTF
- Discharge ports: (1) 1/2" NPTF, (2) 3/8" NPTF
- Please note that this pump does NOT come with oil - find authentic CAT Pumps Oil here.
