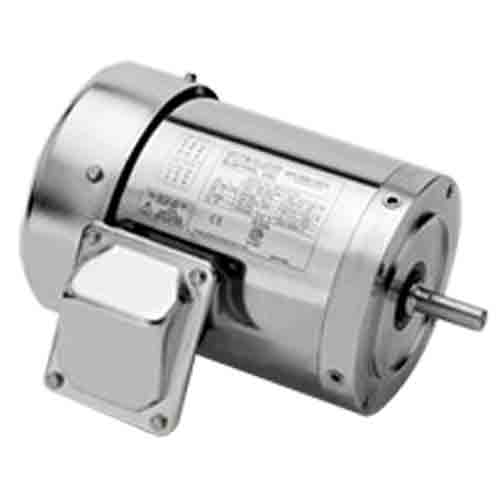

Sterling SH0014MCA Stainless Steel Motor - 1 HP, 3 Phase, 230/460V

Brand:
Mfr. Model #:
SH0014MCA
KR Part #:
MSE3025
Weight:
32.00 lbs
Out of Stock - Pre-Order Now
MSRP
$1,288.80
Now Only!
$758.12
Nema Premium Sterling 1 horsepower motor for car wash facilities. Runs at 1750 RPM on full load.



Technical Specifications

RPM: 1800
Voltage AC: 230/460
Horsepower: 1
Phase: 3
Amps: 2.8/1.4

Product Description

1 Horsepower Electric Motor

A reliable, cost-effective motor for your wash facility. Features Premium Efficiency for the best performance possible! Constructed with sturdy premium efficient stainless steel for long-lasting service life.

Features:

  • Premium Efficient stainless steel
  • Rolled steel frame and cast iron end brackets
  • Sterli-seal washdown duty
  • Class 'F' insulation
    • 1.15 service factor
  • Ideal for 208 volt operation
  • C-face supplied with internally locked drive end bearing

Specifications:

  • Horsepower: 1 HP
  • RPM: 1800 RPM, 1750 RPM (full load)
  • 3 Phase
  • Frequency: 60
  • Voltage: 230/460V
  • Frame Size: 56TC
  • Footless Mounting
  • TEFC Enclosure
  • Amps: 2.8/1.4, 24/12 (locked)
  • Efficiency:
    • 100%: 85.5
    • 75%: 85
    • 50%: 83
  • Power Factor:
    • 100%: 78
    • 75%: 68.8
    • 50%: 55
  • Full Load Torque: 2.99 lb. / sq. ft.
  • Locked Rotor Torque: 280% of Full Load
  • Breakdown Torque: 370% of Full Load
  • Brake Torque: 0 ft. lb.
  • Premium Efficiency Type
  • Stainless Steel Construction
