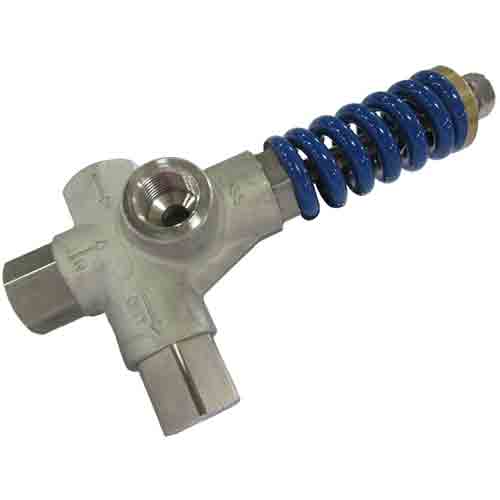

Giant Pumps 22095-5000 Pressure Actuated Unloader - 21 GPM, 4000 PSI
Brand:
Mfr. Model #:
22095-5000
KR Part #:
PU22095-5000
Weight:
2.90 lbs
Protect your pumps and easily regulate flow rate in your car wash pump systems. 316 Stainless Steel unloader, 1/2" inlet and outlet. Handles continuous pressure up to 4000 PSI.
Technical Specifications
Inlet Port: 1/2 inch
Max GPM: 21
Max PSI: 4000
Max Temperature: 195 degrees F
Outlet Port: 1/2 inch
Product Description
Pressure-Actuated Unloader
Essential for regulating flow in pump systems and maintaining pressure. Diverts flow to bypass port when no flow is going out to the outlet port. Constructed to handle one or more shut-off guns and should be run with no bypass. Actuates at 20% above system pressure.
Port Sizes: 1/2" FNPT (Outlet/Inlet)
- Normal Pressure Range: 400 PSI to 4000 PSI
- Permissible Pressure: 4500 PSI
- Stainless steel casing
- Viton O-rings
- Stainless steel cone-kick-back valve with o-ring
- Interchangeable stainless steel bypass valve seat
- Connections for pressure gauge or pressure switch
