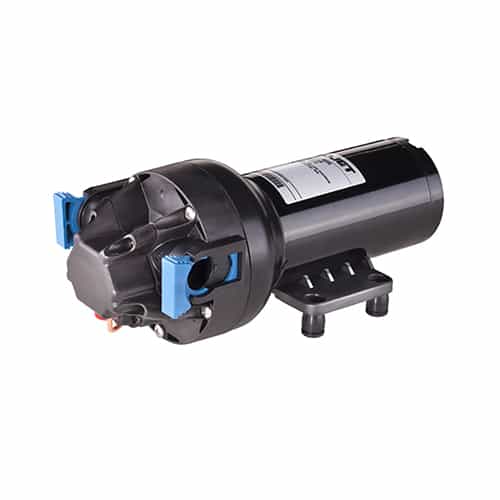

Flojet R8501134A High-Capacity VersiJet Series 12V Polypropylene Pump - 5 GPM

Mfr. Model #:
KR Part #:
5.00 lbs
Call For Availability
Now Only!

The Flojet R8501134A Electric Diaphragm Pump is a polypropylene pumping unit that uses 12VDC electricity to provide smooth, uninterrupted flow of liquids. This pump uses a Santoprene diaphragm, as well as Viton check valves that make it ideal for soft washing and other applications that use harsh, abrasive chemicals. From the Flojet VersiJet Series of high-capacity pumps, the pump boasts a 5-chamber design that provides the best performance on the market. It's self-priming to 10' and IPX6 rated. 5 GPM maximum flow rate, 3/4" hose barb ports, 12VDC.

Prep 65

Prop 65


Technical Specifications

Voltage DC: 12
Max GPM: 5
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Max PSI: 70
Max Temperature: 130 degrees F

Product Description

R8501134A High-Capacity 5 GPM Flojet Pump

The Flojet R8501134A Pump is a 12-volt diaphragm pump with flow rates up to 5 GPM. This pump is part of the high-capacity VersiJet Series, a line of pumps featuring an innovative 5-chamber design that provides unequaled performance in the pump market. The R8501134A VersiJet has a polypropylene body, a Santoprene diaphragm, and Viton check valves. Using Viton makes this pump an excellent choice for soft wash and other applications that use harsh and abrasive chemicals. The pump is self-priming to 10' when wetted and is IPX6 rated with a sealed motor and pressure switch. Electric operation provides smooth, uninterrupted flow of fluids, and it's suitable for intermittent duty cycles while having run-dry capabilities.

R8501134A Specifications:

  • 12 volt DC
  • Polypropylene construction
  • Santoprene diaphragm
  • Viton check valves
  • 5 GPM flow rate
  • 3/4" hose barb port fittings
  • 70 PSI SW70 pressure switch
  • 130° Fahrenheit maximum fluid temperature
  • Intermittent duty cycle
  • CE, RoHs, IPX6 certifications

Features and Benefits:

  • Designed to be the most reliable and versatile pumps on the market
  • Ideal solution for spraying fluid transfer, filtration, dispensing, and pressure boosting
  • IPX6 rated pump with sealed motor and pressure switch
  • Self-priming to 10' when wetted
  • Co-injected molded diaphragm technology

Common Applications:

  • Soft Wash (pressure washing with low pressure and chemicals)
  • Car Wash
  • Evaporative Cooling Systems
  • Industrial Fluid Transfer
  • Agriculture
  • Fogging/Misting
  • Boom Sprayers
  • Diesel Exhaust Fluid (DEF) Transfer
  • Fluid Exchange Exhaust Cleaning
