General Pump TT931L TT Series 51 Triplex Plunger Pump, 2.9 GPM, 1500 PSI, Left Shaft
Brand:
Mfr. Model #:
TT931L
KR Part #:
GPTT931L
Weight:
11.20 lbs
GTIN:
682491118763
Manuals

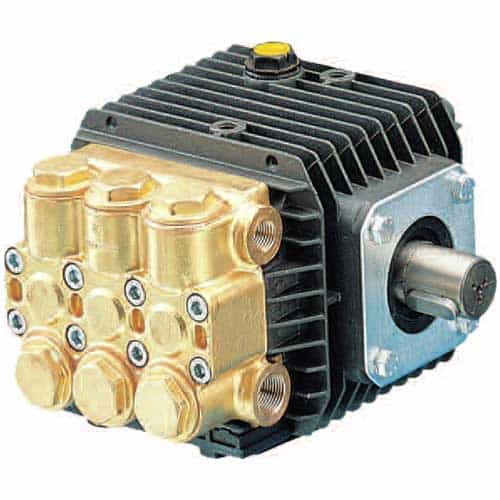

Solid shaft triplex plunger pump perfect for pressure wash applications at your facility. 24mm solid shaft for pulley mount or direct drive with flex coupler and bell housing. Up to 2.9 GPM, at pressures up to 1500 PSI. Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Stroke: 8 millimeter
Shaft Diameter: 34 millimeter
RPM: 2800
Max Temperature: 165 degrees F
Max PSI: 1500
Max GPM: 2.9
Inlet Port: 3/8 inch
Horsepower: 3
Crankcase Capacity: 11.2 ounce
Bore: 15 millimeter
Product Description
TT Series 51 Solid Left Shaft
A great choice for cleaning, RO and misting applications. Comes with a 24 mm solid shaft for simple pulley mounting or direct drive with flex coupler and bell housing. Forged brass manifold extends service life and prevents damage.
Dimensions: 7.0" x 6.9" x 5.1"
Features:
- Oil-bath crankcase
- Solid ceramic plungers w/ continuously lubricated packings
- Original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Forged brass manifold
- Ideal for all general cleaning applications
- Standard with 24mm solid left shaft for pulley mount or direct drive with flex coupler and bell housing
Specifications:
- Maximum Volume: 2.9 GPM
- Maximum Discharge Pressure: 1500 PSI
- Maximum Pump Speed: 2800 RPM
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 3 ft. water (2.6 in. Hg)
- Plunger Bore (in / mm): .591 / 15
- Plunger Stroke (in / mm): .315 / 8
- Oil Capacity: 11.2 oz.
- Maximum Fluid Temperature: 165 Degrees F
- Inlet Port Thread: 3/8-19 BSP-F
- Discharge Port Thread: 1/4-19 BSP-F
- Shaft Diameter: .945 in. / 24 mm
- Weight: 11.2 lbs.
- UPC: 682491118763
