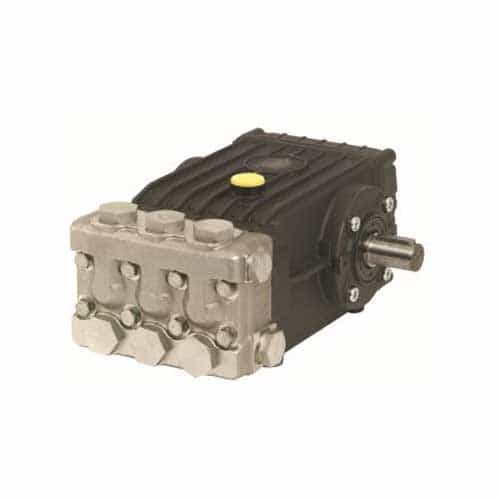

General Pump TS2016SS Industrial Pump 5.55 GPM, 3000 PSI
Brand:
Mfr. Model #:
TS2016SS
KR Part #:
GPTS2016SS
Weight:
31.00 lbs
GTIN:
682491120308
Manuals
This General Pump has 316 stainless steel manifold for maximum corrosion resistance.
Technical Specifications
Max PSI: 3000
RPM: 1450
Crankcase Capacity: 40.6 ounce
Inlet Port: 1/2 inch
Max Temperature: 140 degrees F
Shaft Diameter: 24 millimeter
Product Description
3000 PSI General Pump
This TS series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Its new optimized outlet valves help with a long lasting life warranty.
Dimensions: 12.25 X" 9.2" X 6.9"
- 316 stainless steel manifold for maximum corrosion resistance.
- The preferred pump frame in the industry.
- Solid ceramic plungers with continuously lubricated packings.
- Oversized connecting rods for maximum life.
- Patented "high tech" low and high-pressure seals.
Specifications:
- Max Volume: 5.55GPM
- Max Discharge Pressure: 3000PSI
- Max Pump Speed: 1450RPM
- Max Inlet Pressure: 115PSI
- See more under the Specifications tab
