General Pump HF22A HF Series Belt Drive Industrial Pump 15 GPM, 5800 PSI

Mfr. Model #:
KR Part #:
132.00 lbs
Call For Availability
Now Only!

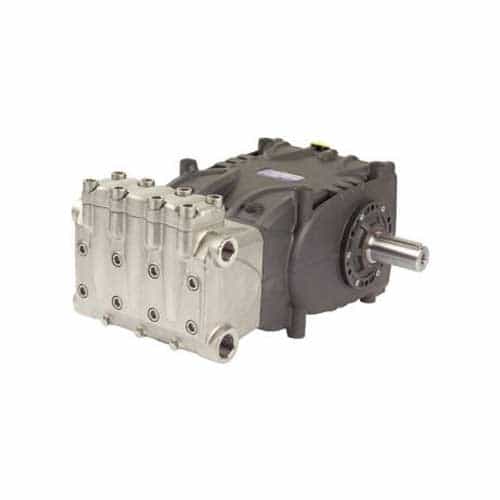

This General Pump is a new generation pump that has a triplex plunger pump design. Patent-pending, symmetrical power end design features top and bottom mounting holes allowing for easy left to right shaft conversion.
Freight Only

Freight Only


Technical Specifications

Max PSI: 5800
RPM: 1000
Crankcase Capacity: 128.5 ounce
Inlet Port: 1 inch
Max Temperature: 140 degrees F
Shaft Diameter: 40 millimeter

Product Description

5800 PSI General Pump

This HF series pump is made up of stainless steel valves with solid ceramic plungers, cast iron guide, nickel treated and taper roller bearings. It has low-high pressure packing design with an integrated cooling system.

Dimensions: 20.0" X 14.5 X 9.4"

  • Symmetrical power and featuring top and bottom mounting holes allowing for easy left to right shaft conversion.
  • Low-high pressure packing design with integrated cooling system.
  • High volumetric efficient suction/delivery valves.
  • Splash lubrication.SAE-B Hydraulic bell housing and flexible couplers available


  • Max Volume: 15.0 GPM
  • Max Discharge Pressure: 5800 PSI
  • Max Pump Speed: 1000 RPM
  • Max Inlet Pressure: 45 PSI
  • See more under the Specifications tab
