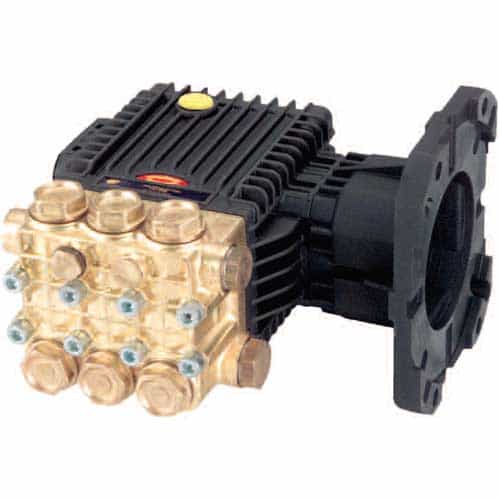

General Pump TX1506G8 TX Series 63 Plunger Pump with Gas Engine Flange, 2.6 GPM, 3000 PSI, Right Shaft
Brand:
Mfr. Model #:
TX1506G8
KR Part #:
GPTX1506G8
Weight:
18.00 lbs
GTIN:
682491113836
Compact design plunger pump for high-pressure cleaning applications. General Pump hollow shaft pump flanged for direct couple to gasoline engines (SAE J609).
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Max GPM: .13
Inlet Port: 1/2 inch
Max GPM: 2.6
Max PSI: 3000
Max Temperature: 165 degrees F
RPM: 3400
Shaft Diameter: 25.4 millimeter
Stroke: 6.5 millimeter
Product Description
TX Series 63, Hollow Shaft
The General Pump TX1506G8 is a durable and reliable triplex plunger pump with 1" hollow shaft. Boasts high power performance and flanged mounting for direct couple to gasoline engines (SAE J609). Industry-grade construction helps prolong service life to save you time and money.
Pump Dimensions: 8.4" x 8.4" x 6.5"
Shaft Diameter: 1" / 25.4 mm
- Flanged for direct couple to gasoline engine (SAE J609)
- Set screw for key way
- Oversized bearings and new generation seal system for prolonged service life
- Forged brass manifold
- UPC: 682491113836
Specifications:
- Maximum Volume: 2.6 GPM
- Maximum Pressure: 3000 PSI
- Maximum RPM: 3400 RPM
- Inlet Port: 1/2" BSP-F
- Discharge Port: 3/8" BSP-F
- 14 ounce crankcase capacity
- Bore: 15mm
- Stroke: 6.5mm
- 125 PSI maximum inlet pressure
- 1" hollow shaft
- Flooded maximum inlet vacuum
- Use GP Series 100 oil for best performance
- Weight: 18 lbs.
