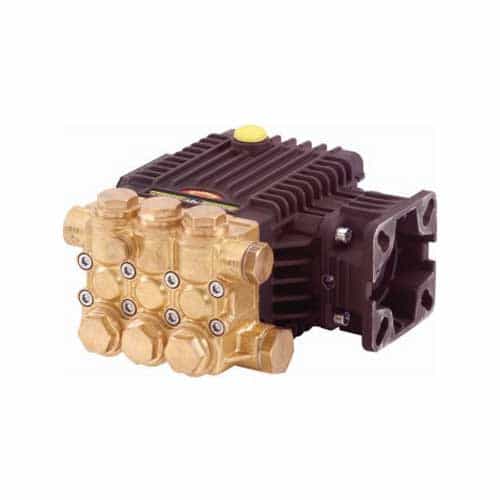

General Pump TX1506G6 TX Series Pump 2 GPM 3000 PSI
Brand:
Mfr. Model #:
TX1506G6
KR Part #:
GPTX1506G6
Weight:
18.00 lbs
GTIN:
682491114734
This General Pump has a new generation seal system that allows for a longer life.
Technical Specifications
Max PSI: 3000
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 3/4 inch
Stroke: 6.5 millimeter
Product Description
3000 PSI General Pump
This TX series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Its new optimized outlet valves help with a long lasting life warranty.
Dimensions: 8.4" X 8.3X 4.8"
- Triplex Plunger Pump
- Compact design
- Forged brass manifold with exclusive lifetime warranty
- Die/cast, anodized aluminum oil/bath crankcase
- Long life, low pressure seals
- Oversized bearings and sight glass
Specifications:
- Max Volume: 2.6GPM
- Max Discharge Pressure: 3000PSI
- Max Pump Speed: 3400RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
