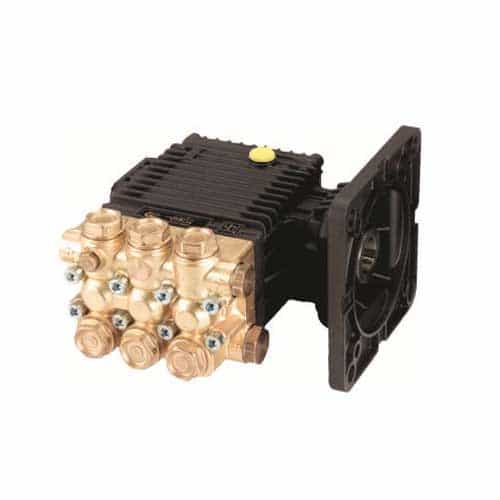

General Pump EZ2530SUI Plunger Pump, 3.0 GPM, 2500 PSI
Brand:
Mfr. Model #:
EZ2530SUI
KR Part #:
GPEZ2530SUI
Weight:
19.00 lbs
GTIN:
682491119869
This triplex General Pump plunger pump has a new generation seal system that allows for a longer life. Forged brass manifold for durability. Handles up to 2500 PSI, for a flow rate up to 3.0 GPM.
Technical Specifications
Max PSI: 2500
RPM: 1750
Bore: 15 millimeter
Shaft Diameter: 24 millimeter
Stroke: 13 millimeter
Max Temperature: 165 degrees F
Inlet Port: 1/2 inch
Crankcase Capacity: 14 ounce
Product Description
2500 PSI General Pump
This EZ series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. Its new optimized outlet valves help continue to provide top-level performance for a long pump life span.
Dimensions: 8.8" x 8.8 x 6.3"
- Triplex Plunger Pump.
- Forged brass manifold
- Solid ceramic plunger design
- Die/cast, anodized aluminum oil bath crankcase
- Unitized stainless steel inlet and discharge valves
Specifications
- Max Volume: 3.0 GPM
- Max Discharge Pressure: 2500 PSI
- Max Pump Speed: 1750 RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
