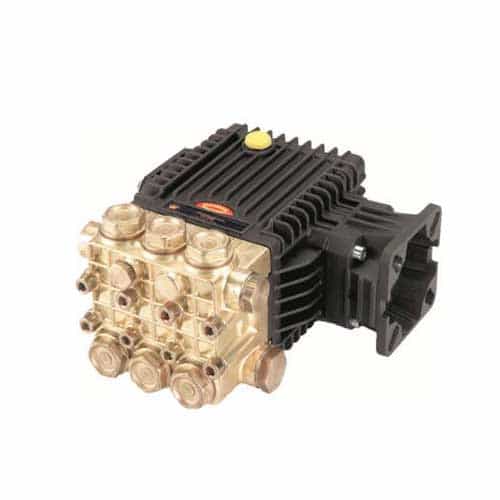

General Pump TP2533J34 Plunger Pump - 3.3 GPM, 2500 PSI, 3400 RPM, 8 mm Stroke
Brand:
Mfr. Model #:
TP2533J34
KR Part #:
GPTP2533J34
Weight:
11.40 lbs
GTIN:
682491119364
This General Pump has a new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.
Technical Specifications
Max PSI: 2500
RPM: 3400
Bore: 15 millimeter
Stroke: 8 millimeter
Shaft Diameter: 3/4 inch
Max Temperature: 165 degrees F
Inlet Port: 3/8 inch
Crankcase Capacity: 11.2 ounce
Product Description
3400 PSI General Pump
This General Pump TP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. New optimized outlet valves and new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.
Dimensions: 7.0" x 7.2 x 5.1"
- Triplex Plunger Pump
- Forged brass manifold
- Die/cast, anodized aluminum oil/bath crankcase.
- Unitized, stainless steel inlet and outlet valves.
- Ideal for all general cleaning and misting applications.
Specifications:
- Max Volume: 3.3GPM
- Max Discharge Pressure: 2500PSI
- Max Pump Speed: 3400RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
