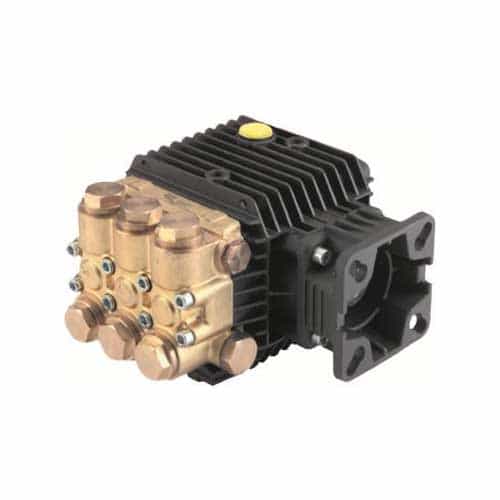

General Pump TP2526J34 Plunger Pump 2.6 GPM 2500 PSI
Brand:
Mfr. Model #:
TP2526J34
KR Part #:
GPTP2526J34
Weight:
11.40 lbs
GTIN:
682491119357
This General Pump has a new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.
Technical Specifications
Max PSI: 2500
RPM: 3400
Bore: 15 millimeter
Crankcase Capacity: 11.2 ounce
Inlet Port: 3/8 inch
Max Temperature: 165 degrees F
Shaft Diameter: 3/4 inch
Stroke: 6.6 millimeter
Product Description
2500 PSI General Pump
This General Pump TP series pump is a triplex plunger pump that has a solid ceramic plunger with a dual guide system. New optimized outlet valves and new generation seal system that allows for a longer life. High-volume, mid-pressure pump built for rigorous duty cycles, high temperatures, and chemicals.
Dimensions: 7.0" x 7.2" x 5.1"
- Triplex Plunger Pump
- Forged brass manifold
- Die/cast, anodized aluminum oil/bath crankcase.
- Unitized, stainless steel inlet and outlet valves.
- Ideal for all general cleaning and misting applications.
Specifications:
- Max Volume: 2.6 GPM
- Max Discharge Pressure: 2500 PSI
- Max Pump Speed: 3400 RPM
- Max Inlet Pressure: 125 PSI
- See more under the Specifications tab
