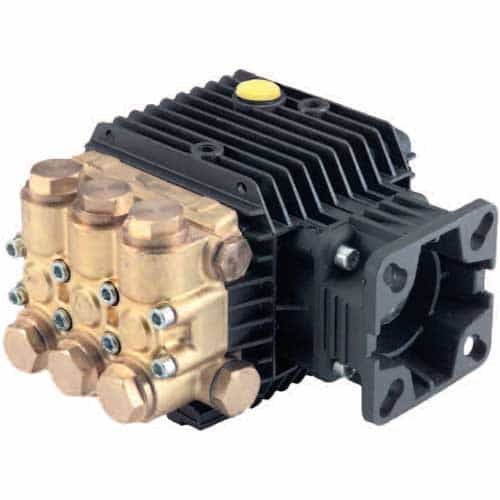

General Pump TP2520J34 TP Series 51 Pump 1.9 GPM, 2500 PSI
Brand:
Mfr. Model #:
TP2520J34
KR Part #:
GPTP2520J34
Weight:
11.40 lbs
GTIN:
682491119340
2500 PSI Triplex Plunger Pump featuring solid ceramic plungers, ideal for general pressure cleaning and washing applications. Features die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves. Comes standard with SAE J609 gasoline engine mounting flange.
Technical Specifications
Crankcase Capacity: 11 oz
Max GPM: 1.9
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 3400
Bore: 15 millimeter
Stroke: 5 millimeter
Shaft Diameter: 19 millimeter
Inlet Port: 3/8 inch
Product Description
TP Series 51, J34
Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. TP Series 51 triplex plunger pumps come standard with SAE J609 gasoline engine mounting flange and are built for general cleaning applications.
Pump Dimensions: 7.2" x 7.2" x 5.5"
Features
- Forged brass manifold
- Die-cast annodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- Interpump unitized, stainless steel, K01 inlet and outlet valves
- Includes SAE J609 gasoline engine mounting flange
Specifications
- Maximum Volume: 1.9 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Fluid Temperature: 165°F
- Inlet Port: 3/8"-14 BSPP-F
- Outlet Port: 1/4"-19 BSPP-F
