General Pump T9051EBF Series 51 Triplex Plunger Pump, 2.11 GPM, 1500 PSI, 1750 RPM, Right Shaft
Brand:
Mfr. Model #:
T9051EBF
KR Part #:
GPT9051EBF
Weight:
13.20 lbs
GTIN:
682491026358

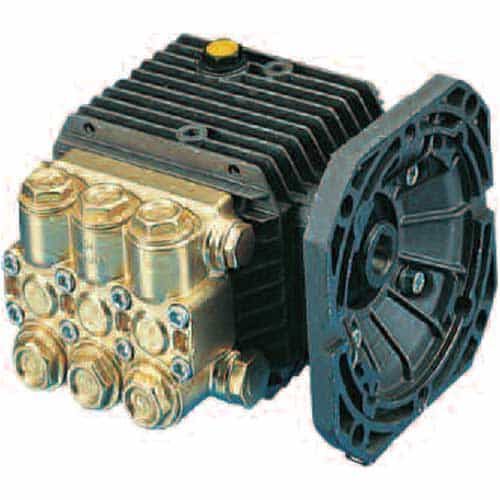

Plunger pump with brass manifold, aluminum crankcase, and three solid ceramic plungers. Flanged for mounting to NEMA 56C electric motor. Pressure up to 1500 PSI, maximum flow of 2.11 GPM, 1750 RPM.
Technical Specifications
Bore: 15 millimeter
Horsepower: 2.2
Max PSI: 1500
RPM: 1750
Max GPM: 2.11
Shaft Diameter: 5/8 inch
Stroke: 9.4 millimeter
Product Description
Pump with Electric Engine Flange
The General Pump T9051EBF Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 1750 RPM. Has a maximum flow rate of 2.11 GPM and a maximum pressure of 1500 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!
Dimensions: 7.0" x 7.2" x 5.5"
Features:
- Forged brass manifold
- Die-cast annodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
- Comes standard with NEMA 56C electric motor mounting flange
- Includes a pressure unloader and chemical injector
Specifications:
- Maximum Flow: 2.11 GPM
- Maximum Pressure: 1500 PSI
- Maximum RPM: 1750 RPM
- Shaft: 5/8" hollow, right side
- 11.2 ounce crankcase capacity
- Inlet Port: 3/8"
- Outlet Port: 1/4"
- Bore: 15 mm
- Stroke: 9.4 mm
- 165° degrees Fahrenheit maximum temperature
- Right shaft
- Weight: 11.5 lbs.
