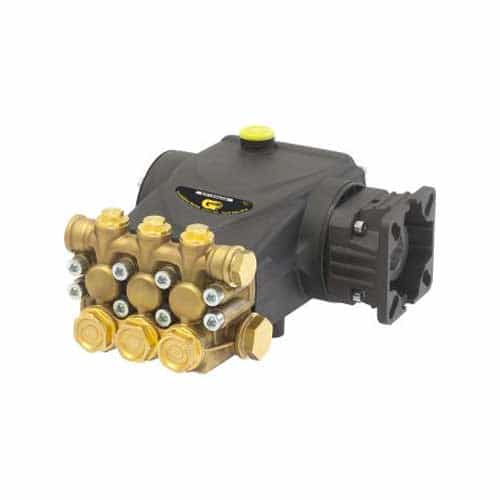

General Pump EP1508G6 Triplex Plunger Pump with Gas Flange, 3.4 GPM, 3045 PSI, 3/4 Inch Hollow Right Shaft
Brand:
Mfr. Model #:
EP1508G6
KR Part #:
GPEP1508G6
Weight:
15.80 lbs
GTIN:
682491066255
Call For Availability
This General Pump triplex plunger pump features a new generation seal system that allows for a longer life. Housed in forged brass manifold for improved working pressure. 3.4 GPM flow, at pressures up to 3045 PSI.
Technical Specifications
Max PSI: 3045
RPM: 3400
Crankcase Capacity: 15
Bore: 15 millimeter
Stroke: 8 millimeter
Max Temperature: 165 degrees F
Max PSI: 3045
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Max GPM: 3.5
Shaft Diameter: 3/4 inch
Product Description
General Pump 3045PSI General Pump
Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. 3/4" hollow shaft, flanged for direct couple to gas engines.
Dimensions: 9.5" x 8.38" x 5.1"
- Advanced forged brass manifold, increases working pressure
- Patent/pending plunger guide bushing
- Solid ceramic plungers with an innovative dual guide system
- Optimized outlet valves
- New dual lip oil seal
Specifications:
- Max Volume: 3.4 GPM
- Max Discharge Pressure: 3045 PSI
- Max Pump Speed: 3400 RPM
- Max Inlet Pressure: 125 PSI
- Inlet Port: 1/2"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
- See more under the Specifications tab
