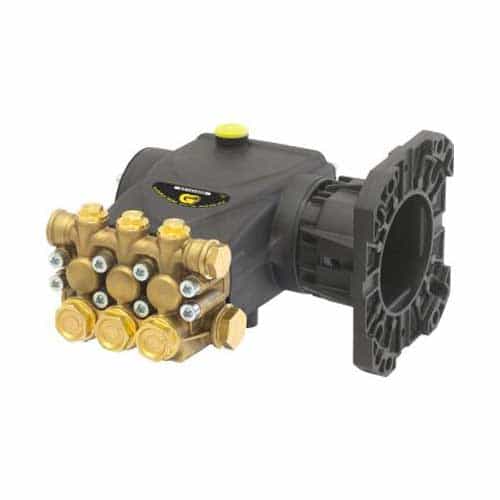

General Pump EP1306G8 Triplex Plunger Pump With Gas Flange - 2.1 GPM, 4000 PSI

Brand:
Mfr. Model #:
EP1306G8
KR Part #:
GPEP1306G8
Weight:
15.90 lbs
GTIN:
682491066170
Call For Availability
MSRP
$995.00
Now Only!
$339.76
This General Pump triplex plunger pump features a new generation seal system that allows for a longer life. Forged brass manifold for improved working pressure, includes SAE J609B flange for direct couple to gasoline engines. 2.1 GPM flow, at pressures up to 4000 PSI.



Technical Specifications

Max PSI: 4000
RPM: 3400
Bore: 13 millimeter
Crankcase Capacity: 15 ounce
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Shaft Diameter: 1 inch
Stroke: 6 millimeter

Product Description

Direct Couple to Gasoline Engines

Triplex plunger pump featuring advanced forged brass manifold for increased working pressure. Solid ceramic plungers with innovative dual guide system and guide bushing for superior performance. This pump has large, lightweight connecting rods with long-life low and high-pressure seals. 1 Inch hollow right shaft with SAE J609B flange.

Dimensions: 9.5" X 8.38 X 5.1"

  • Triplex Plunger Pump
  • Advanced forged brass manifold, increases working pressure to 4,000 PSI.
  • Patent/pending plunger guide bushing
  • Solid ceramic plungers with innovative dual guide system.
  • Optimized outlet valves
  • New dual lip oil seal

Specifications:

  • Max Volume: 2.1 GPM
  • Max Discharge Pressure: 4000 PSI
  • Max Pump Speed: 3400 RPM
  • Max Inlet Pressure: 125 PSI
