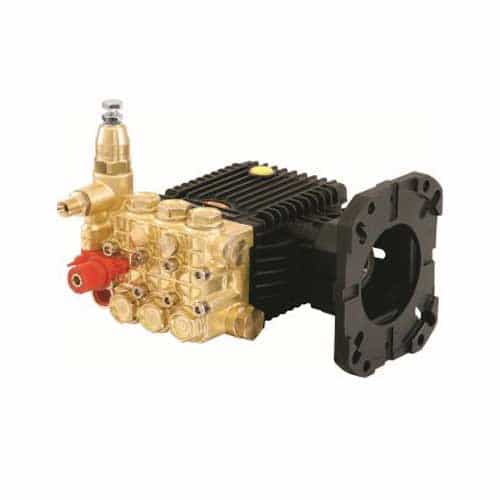

General Pump TX1508G8UK Plunger Pump - 3 GPM, 3000 PSI
Brand:
Mfr. Model #:
TX1508G8UK
KR Part #:
GPTX1508G8UK
Weight:
18.20 lbs
GTIN:
682491119777
Call For Availability
Direct drive triplex plunger pump provides convenience and durability. The TX1508G8UK features a new generation seal system that allows for a longer life. Produces up to 3.0 GPM at up to 3000 PSI.
Technical Specifications
Max PSI: 3000
RPM: 3400
Crankcase Capacity: 14
Max Temperature: 165 degrees F
Bore: 15 millimeter
Stroke: 8 millimeter
Shaft Diameter: 25.4 millimeter
Inlet Port: 1/2 inch
Product Description
3000PSI General Pump
The General Pump TX1508G8UK pump provides excellent service for car wash and pressure washing applications. Features solid ceramic plungers, oversized connecting rods, and next generation packings for exceptional seal life, supreme durability, and reliability. Produces consistent mid-range flow at high pressures, and features a built-in pressure unloader.
Dimensions: 8.4" X 8.3 X 4.8"
Features:
- Triplex Plunger Pump.
- Forged brass manifold with
exclusive lifetime warranty. - Long life low and
high pressure seals. - Oversized roller bearings and sight glasses
Specifications:
- Max Volume: 3.0 GPM
- Max Discharge Pressure: 3000 PSI
- Max Pump Speed: 3400 RPM
- Max Inlet Pressure: 125 PSI
- Crankcase Oil Capacity: 14.0
- Shaft: 1"
- Max Fluid Temp: 165
