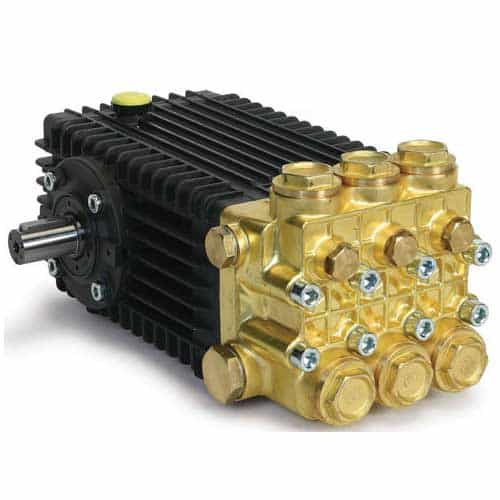

General Pump TSF1819L 66 Series High FLow Solid Shaft Pump - 6.3 GPM, 4350 PSI, Left Shaft
Brand:
Mfr. Model #:
TSF1819L
KR Part #:
GPTSF1819L
Weight:
40.70 lbs
GTIN:
682491071037
Manuals
This is a TSF high flow pump from General Pumps. Uses GP Series 100 oil.
Technical Specifications
RPM: 1750
Bore: 18 millimeter
Crankcase Capacity: 40.6 ounce
Horsepower: 18.8
Inlet Port: 3/4 inch
Max GPM: 6.3
Shaft Diameter: 24 millimeter
Stroke: 19 millimeter
Max PSI: 4350
Product Description
24 mm Solid Shaft 66 Series Pressure Cleaning Pump
This General Pump TSF1819L pump has a left shaft. It features oversized roller bearings and a fully anodized crankcase. Its innovative seal is designed for extended seal life. The plunger design improves thermal shock resistance, while the valve cap improves hydrostatic performance.
Dimensions: 14.94" x 9.78" x 6.99"
- Max Volume: 6.3 GPM
- Max Discharge Pressure: 4350 PSI
- Max Pump Speed: 1750 RPM
- Max Inlet Pressure: 125 PSI
- Max Inlet Vacuum: 9 ft. water
- UPC: 682491071037
- See more specs under Specifications tab
