General Pump CW3555L CW 47 Series Pump 5.6 GPM, 3500 PSI - Left Shaft

Brand:
Mfr. Model #:
CW3555L
KR Part #:
GPCW3555L
Weight:
32.00 lbs
GTIN:
682491075219
Call For Availability
MSRP
$2,291.76
Now Only!
$782.55

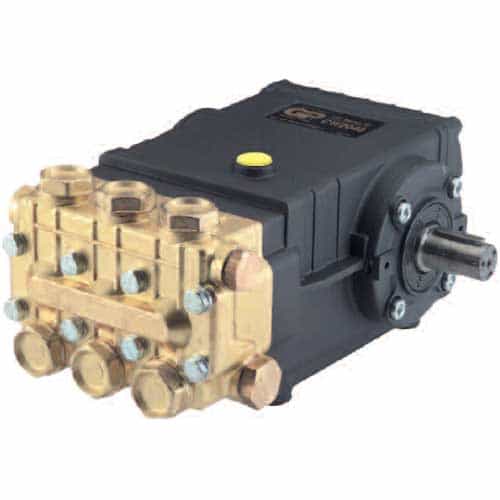

Large-capacity pump with left shaft for vehicle cleaning applications. Note: picture shows right shaft, but this is a left hand pump.



Technical Specifications

Bore: 20 millimeter
Crankcase Capacity: 33.8 ounce
Max GPM: 5.6
Horsepower: 13.4
Max Temperature: 165 degrees F
Shaft Diameter: 24 millimeter
RPM: 1450
Max PSI: 3500
Inlet Port: 1/2 inch
Stroke: 16 millimeter

Product Description

CW 47 Series Pump

Make General CW 47 series pumps your preferred choice for car wash self-service jobs. Forged brass manifold construction ensures long-lasting service life and reliability. A great high capacity pump choice for your car wash facility!

Dimensions: 11.4" x 10.8" x 6.9"

Dimensions (With Rails): 11.4" x 10.8" x 7.9"
Specifications:

  • Specially built for vehicle washing applications
  • Die-cast, anodized aluminum oil-bath crankcase with large capacity
  • Oversized connecting rods extend longevity
  • Solid ceramic plungers with continuously lubricated packings
  • Unitized stainless steel inlet and outlet/discharge valves
  • Uses GP Series 100 Oil
  • Includes left side pump shaft
