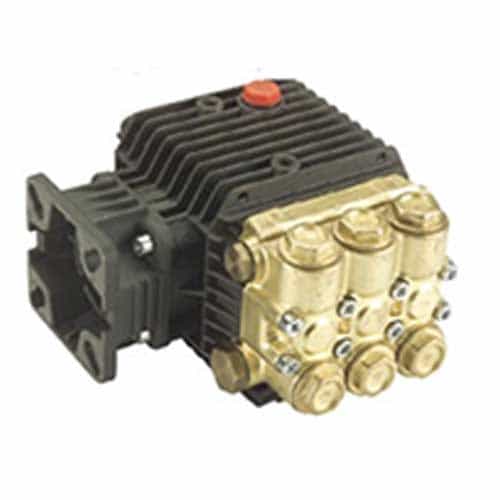

General Pump TT2035GBFL Series 51 Pump, 3.5 GPM, 2000 PSI, Left Shaft
Brand:
Mfr. Model #:
TT2035GBFL
KR Part #:
GPTT2035GBFL
Weight:
11.40 lbs
GTIN:
682491142270
3.5 GPM triplex plunger pump from General Pump features forged brass manifold. Die-cast annodized aluminum, oil-bath crankcase and solid ceramic plungers provide durability. Excellent for general cleaning and misting applications. *TT2035GBFL is the left-handed version of the TT2035GBF*
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.2 ounce
Inlet Port: 3/8 inch
Max PSI: 2000
Max GPM: 3.5
Max Temperature: 165 degrees F
Shaft Diameter: 19 millimeter
Stroke: 8 millimeter
RPM: 3400
Product Description
3.5 GPM, 2000 PSI Triplex Plunger Pump
High quality triplex plunger pump for any pressure wash application. Features forged brass manifold, solid ceramic plungers with continuously lubricated packings and die-cast anodized aluminum crankcase for extra durability along with stainless steel inlet and outlet valves. Great for general wash and misting jobs. Comes standard with SAE J609 gasoline engine mounting flange.
Pump Dimensions: 7.0" x 7.2" x 5.5"
Shaft Size: 3/4" Solid Shaft
Features:
- Left-handed version
- Maximum Flow: 2.8 GPM
- Maximum Pressure: 2000 PSI
- Maximum Torque: 3400 RPM
- Max Temperature: 165° F
- Inlet Port: 3/8" FPT
- Outlet Port: 1/4" FPT
- Bore: .591" (15mm)
- Stroke: .315" (8mm)
- Crankcase Capacity: 11.2 oz. Nondetergent SAE 30W oil
Lubrication: Fill the crankcase to oil gauge window per specifications with Nondetergent SAE 30W oil. Change the oil after a 40 hour break-in period, then every three (3) months or 500 hour intervals thereafter
