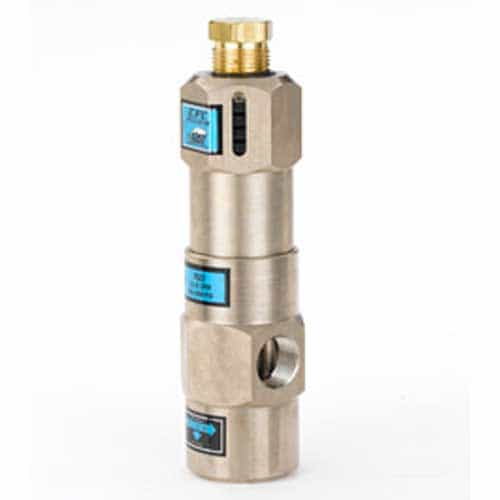

CAT 7024 Pressure Regulator, 25 GPM, 4000 PSI
Brand:
Mfr. Model #:
7024
KR Part #:
PU7024
Weight:
5.15 lbs
Usually Ships in 2 Weeks
Manuals
This 25 GPM regulator has a flow-through design for easy plumbing into the discharge line or directly onto the discharge head. Regulator is designed for single or multiple pump, weep, or multi-nozzle systems. Max pressure of 4000 PSI, 3/4" ports.
Technical Specifications
Max PSI: 4000
Min GPM: 2.5
Max GPM: 25
Min PSI: 2000
Max Temperature: 240 degrees F
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Product Description
Steel High Pressure Regulator
This regulator is designed for single or multiple pump, weep, or multi-nozzle systems. It comes with standard FPM elastomers for compatibility with liquids and temperatures up to 240 degrees Fahrenheit. For optimum performance, 5-10% by-pass is needed.
Other features include a conical piston and seat for smooth flow that reduces wear and tear. Thanks to the high velocity design, it provides consistent pressure for multiple pump or shut-off gun installations. Also, the adjusting nut offers easy calibrated pressure adjustments. Quick return to full pressure when all guns and nozzles resume operation.
Dimensions: 8.5" x 2.25"
- Minimum Pressure: 2000 PSI
- Max Pressure: 4000 PSI
- Max Flow: 25 GPM
- Minimum Flow: 2.5 GPM
- Maximum Temperature: 240°F
- Inlet Port: 3/4" NPTF
- Outlet Port: 3/4" NPTF
