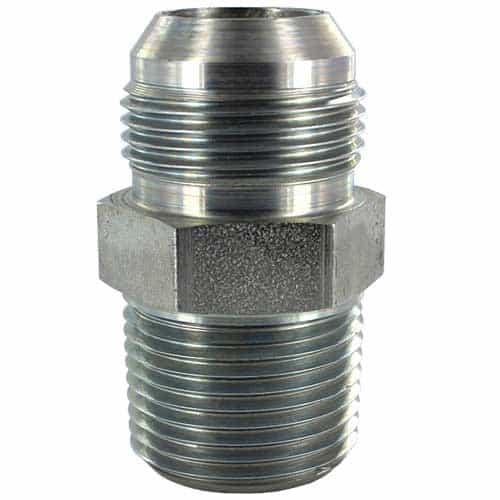

Parker 16 FTX-S Triple-Lok 37 Degree Flare Straight Steel Connector - 1in. M JIC x 1in. MNPT

Mfr. Model #:
16 FTX-S
KR Part #:
0.35 lbs
Usually Ships in 2 Weeks
Now Only!

Product Description

Parker Steel Straight Connector

Parker Triple-Lok 37° Flare JIC tube adapters meet the requirements of both SAE J514 and ISO 8434-2 and offer the industry's broadest offering of port ends. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.
  • Plated steel construction
  • 1" Male 37° Flare x 1" MNPT
  • 4500 PSI
  • Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance
  • Hydraulic fluid and gas handling connections
  • Robust port stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
  • Steel fittings come standard with ToughShield Plus plating
  • Stainless Steel nuts have a coating to prevent galling.
