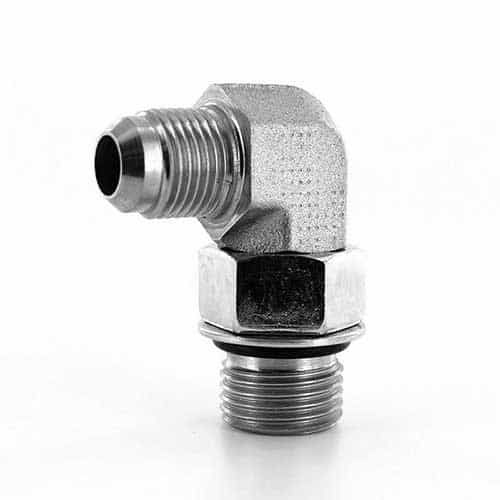

Parker 6-10 C5OX-S Triple-Lok 90 Degree Elbow Fitting - 3/8 Inch M JIC X 5/8 Inch M SAE, 37 Degree Flare Tube to SAE-ORB, 6000 PSI

Brand:
Mfr. Model #:
6-10 C5OX-S
KR Part #:
PLF581S
Weight:
0.36 lbs
Usually Ships in 2 Weeks
MSRP
$49.47
Now Only!
$23.75
A fitting designed for hydraulic fluid and gas handling connections. Housing is made with steel. Handles a maximum pressure of 6000 PSI.



Technical Specifications

Max PSI: 6000

Product Description

90 Degree Steel Fitting

Parker 6-10 C5OX-S is a 90-degree elbow fitting designed to exceeded the SAE corrosion requirements. Body is constructed using steel. Handles a maximum pressure of 6000 PSI. Triple-Lok 37 degree Flare JIC Tube Fittings provide reliable leak-free metal to metal connection. Used for hydraulic fluid and gas handling connections.

Specifications:

  • Connection Type: 37 degree Flare, Tube to SAE-ORB
  • Specifications Met: SAE J514
  • Maximum Dynamic Pressure: 6000 PSI
  • Shape: 90 degree Elbow
  • Connection 1 Size: Male 37 degree Flare
  • Connection 1 Tube Outside Diameter: 3/8-inch, 10 mm
  • Connection 2 Size: Male SAE-ORB
  • Connection 2 Thread Size: 7/8-14 inch
  • O-Ring Material: 90 Durometer Nitrile
  • Body Material: Steel

Product Features:

  • Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
  • Vast selection of port end options, including SAE Straight Thread O-ring Boss (ORB), NPTF, BSPP-ED, BSPP-O-ring Retaining Ring (ORR), BSPP, BSPT, ISO 6149, Metric-O-ring Retaining Ring (ORR), and Metric-ED
  • Parker's Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
  • Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility. This enhanced performance provides customers with a competitive advantage through extended equipment life, leading to increased revenues and reduced warranty costs.
  • Stainless Steel nuts have a coating to prevent galling.

Markets:

  • Construction
  • Military Ground Systems
  • Aerial Lift
  • Agriculture
  • Material Handling
  • Military Marine
  • Engine Transmission

Applications:

  • Hydraulic fluid and gas handling connections
