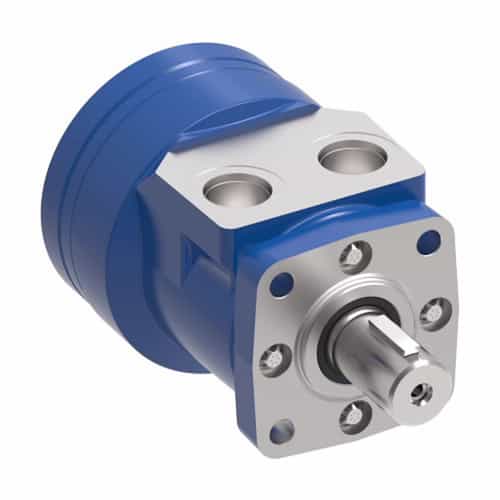

Name: Char-Lynn 103-3581-012 S Series Motor - 963 RPM, 1682 PSI, 15 GPM
Brand: Char-Lynn
SKU: CL103-3581-012

Brand:

Char-Lynn

Mfr. Model #:

103-3581-012

KR Part #:

CL103-3581-012

Weight:

18.00 lbs

Availability:

MSRP

~~$849.16~~

Now Only!

$556.85

Frequent Questions

An S Series Geroler Motor for car wash brushes and conveyers. Generates a maximum torque of 115 Nm. Operates at a maximum speed of 963 RPM.

More Info...

Technical Specifications

Max PSI: 1682

Max GPM: 15

RPM: 963

Min Temperature: -29 degrees F

Max Temperature: 180 degrees F

Product Description

Spool Geroler Motor

The Eaton Char-Lynn 103-3581-012 is a S Series motor with a Geroler that has been optimized geometrically for enhanced performance and a reduced drive-running angle, all while keeping the package compact, keeping the original S Series size. Contains three moving parts (Gerotor, Drive, Shaft) to make maintenance easy. It is equipped with .875-14 UNF-2B SAE O-Ring Ports. Handles a maximum speed of 963 RPM, 1682 PSI, and 15 GPM. Compatible with temperatures ranging from -34°C to 82°C. Ideal for applications involving car wash brushes, conveyors, and other equipment that requires a motor to operate.

Specifications:

Torque: 115 Nm
Intermittent Pressure: 116 Bar (1682 PSI)
Seal Options: Standard
Geroller Options: None
Design Code: 12
Port Type: .875-14 UNF-2B SAE O-Ring Ports
Valve Options: None
Speed Sensor: No
Recommended System Working Temperature: -34°C to 82°C (-29°F 180°F)
Front Seal Kit If Available: 9900101-000
Viscosity Recommendation: 70 SUS
Mounting Type: 4 Bolt Std - 44.40 [1.748] Dia. X 3.05 [.120] Pilot, .375-16 UNC-2B Mounting Holes On 82.55 [3.250] Dia. B.C.
Material: Cast Iron
Flow Rate: 57 l/min (15 GPM)
Maximum Speed: 963 RPM
Paint: Environmental Coated Black
Special Assembly Instructions: None
Displacement: 58 cm³/rev
Two Speed Ratio: None
Case Flow Options: None
Output Shaft Type: Straight
Pressure/Flow Option: None
Shaft Options: None
