General Pump TT9111EBFL 51 Series Pump 3.0 GPM, 1500 PSI
Brand:
Mfr. Model #:
TT9111EBFL
KR Part #:
GPTT9111EBFL
Weight:
11.50 lbs

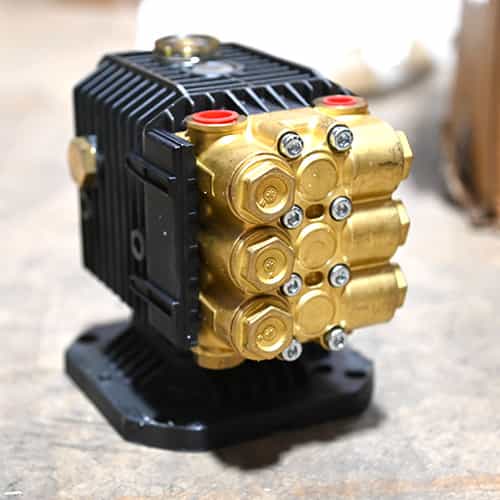

Reliable and durable flanged pump for direct couple to electric motor (NEMA 56C). Note: picture shows right shaft, but this is a left hand pump. 3.0 horsepower engine is required.
Technical Specifications
Max PSI: 1500
Max Temperature: 165 degrees F
RPM: 1750
Inlet Port: 3/8 inch
Bore: 18 millimeter
Shaft Diameter: 16 millimeter
Stroke: 9.4 millimeter
Max GPM: 3
Crankcase Capacity: 11.2 ounce
Product Description
51 Series Hollow Shaft - Electric
High quality triplex plunger pump for your wash facility. Features forged brass manifold, solid ceramic plungers with continuously lubricated packings and die-cast anodized aluminum crankcase for extra durability along with stainless steel inlet and outlet valves. Great for general wash and misting jobs.
Pump Dimensions: 7.0" x 7.2" x 5.5"
Shaft Size: 5/8"
- Hollow Shaft
- Flanged for direct couple to electric motors (NEMA 56C)
- For use on electric motors operating at 1750 RPM, 3.0 horsepower required
Specifications:
- Max Flow: 3.0 GPM
- Max Pressure: 1500 PSI
- Max Temperature: 165°F
