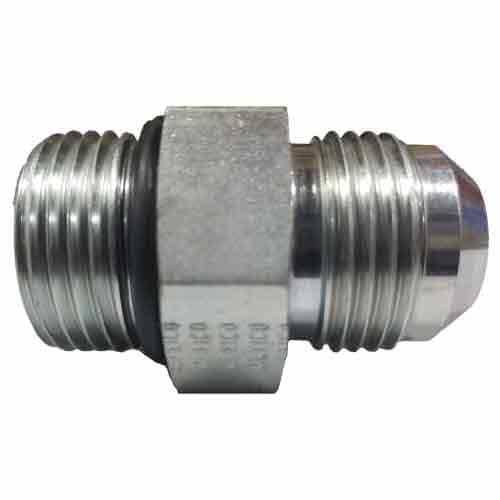

Parker 12 F5OX-S Triple-Lok 37 Degree Flare JIC Tube Male Adapter - 3/4in. JIC x SAE ORB
Brand:
Mfr. Model #:
12F5OX-S
KR Part #:
PLF536S
Weight:
0.35 lbs
In Stock
A Parker Triple-Lok 37° flare JIC tube adapter to create are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications. This male adapter has a 37 degree flare and an SAE ORB end.
NOTE: This is a clearance item with limited inventory. All sales final - no returns.
Technical Specifications
Type: Fitting/Coupler
Product Description
Straight Steel Triple-Lok Adapter
Parker's 37° Flare JIC tube adapters meet the requirements of both SAE J514 and ISO 8434-2. The design has a small metal to metal seal area which results in a compact design, low assembly torque, high temperature and high pressure capability.
This is a clearance item with limited inventory. All sales final - no returns.
Specifications:
- Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust
- Hydraulic fluid and gas handling connections
- 3/4" Male 37 degree flare
- 3/4" Male SAE ORB
- 90 Durometer Nitrile O-ring
- Max Pressure: 5000 PSI
