John Guest PI011224S Acetal Plastic Straight Connector Fitting - 3/8 Push-Fit x 1/2 MNPT
Brand:
Mfr. Model #:
PI011224S
KR Part #:
JG6MC8
Weight:
0.03 lbs
GTIN:
665626175855

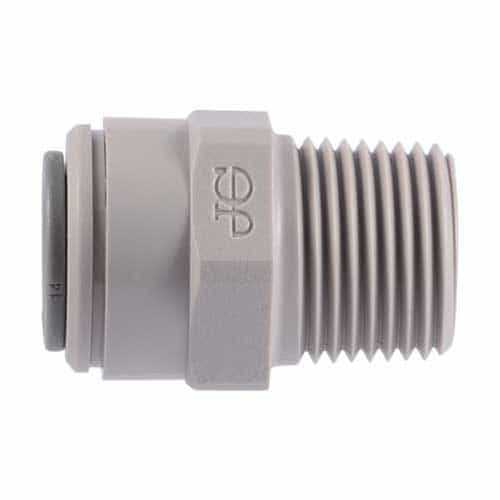

Straight connector fitting made with acetal resin plastic. Fits PVC, copper, polyethylene, and other plastic tubing. NOTE: Image shown is for illustrative purposes, it may not be the exact fitting being sold on this page. See full description for specifications.
Technical Specifications
Max PSI: 145
Max Temperature: 149 degrees F
Product Description
3/8" Tube and 1/4" MNPT Thread Adapter
The John Guest PI011224S Straight Adapter has a push-fit connection for 3/8" outer diameter tube on one end and a 1/2" MNPT thread connection on the other end. This acetal fitting can be used with various types of plastic tubing, braided tubing, and soft metal pipe. This Speedfit car wash fitting is ideal for fast installation in confined places and hard-to-reach spots.
Specifications:
- 3/8" Pipe O.D. x 1/2" Male NPT
- Acetal plastic material
- 145 PSI maximum working pressure
- 149° Fahrenheit maximum working temperature
- 3 Nm maximum torque
- Push-fit connection
- Hot and cold hydronic heating applications
- Lead-free
- Non-toxic
- Can be removed without damage to pipe or fitting
- Non-flammable
- Corrosion-free
- Scale-resistant
Use With These Tube Types:
- Plastic - Polyethylene, nylon, and polyurethane
- Braided tube
- Soft metal - Brass, copper, mild steel
