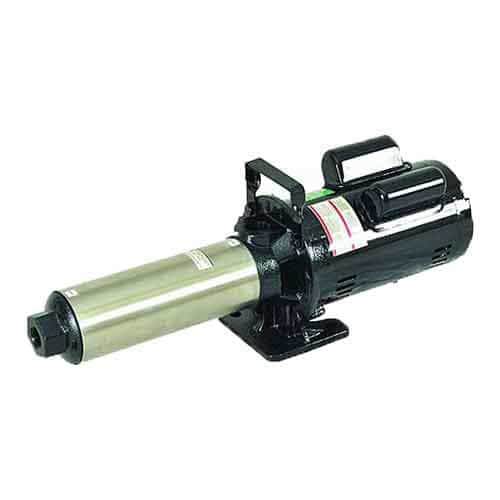

Dayton 45MW72 Open Dripproof 12-Stage Single Phase Booster Pump - 3/4 NPT, 120/240VAC, 1 HP, 15.4 GPM
Brand:
Mfr. Model #:
45MW72
KR Part #:
45MW72
Weight:
60.00 lbs
Availability:
1
Multi-stage booster pump increases pressure from city mains, cisterns and other water sources for proper operation of filtration equipment. Multi-stage design helps to provide steady, quiet, and vibration-free operation. 1 horsepower, 15.4 GPM maximum flow rate, 12 stages.
Technical Specifications
Voltage AC: 120/240
Max GPM: 15.4
Horsepower: 1
Phase: Single
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Max PSI: 171
Amps: 6.3/13
Motors: Open dripproof
Max Temperature: 140 degrees F
Product Description
Cast Iron Booster Pump
The Dayton 45MW72 Booster Pump is a durable cast iron pump providing steady quiet boosting power to city water, cisterns, and low pressure water sources. Includes an open dripproof motor that provides up to 1 horsepower. This is a 120/240VAC pump unit using single phase power and 12 stages. Maximum 15.4 GPM flow rate.
Dimensions: 27 3/16" L x 6 3/4" W x 8 3/4" H
Specifications:
- Horsepower: 1
- Voltage: 120/240 volt AC - 60 Hz
- Flow Rate: 15.4 GPM
- Phase: Single
- Inlet: 3/4" NPT
- Outlet: 3/4" NPT
- Maximum Pressure: 171 PSI
- Maximum Case Pressure: 300 PSI
- Stages: 12
- Housing: Cast iron
- Motor: Open dripproof
- Frame: 56J
- Pump Mounting Position: Horizontal or vertical
- Amps: 13/6.3
- Impeller: Noryl (closed)
- Maximum Liquid Temperature: 140° Fahrenheit
- Seal Material: Buna-N, carbon/ceramic, 304 stainless steel
- Wetted Materials: 304 stainless steel,cast iron, Buna-N, carbon-ceramic, Noryl, Nylon, polycarbonate
- Duty: Continuous
- Agency Compliance: c UL us
- Warranty: 1 year
GPM Rates:
- GPM @ 10 PSI: 15.4
- GPM @ 20 PSI: 14.8
- GPM @ 40 PSI: 14.6
- GPM @ 60 PSI: 13.5
- GPM @ 80 PSI: 11.7
- GPM @ 100 PSI: 11.5
- GPM @ 120 PSI: 10
- GPM @ 140 PSI: 8.5
