Wet Environment Chemical Metering Pump

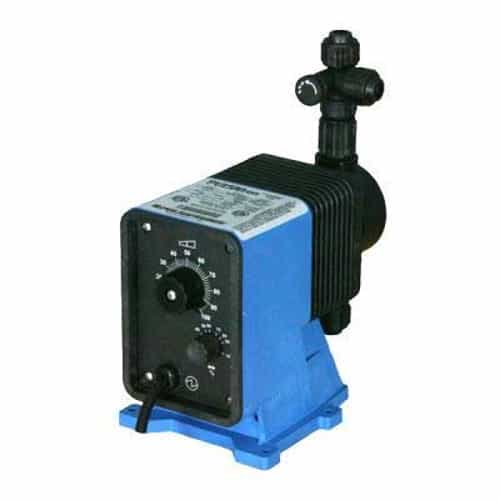

The Pulsafeeder LB03SA-PTC1-XXX pump is from the PULSAtron Series A Plus line of pumps. These positive displacement, diaphragm style pumps have an adjustable output volume from zero to maximum capacity.

PULSAtron Series A Plus pumps feature guided check valves with precise seating and excellent suction characteristics. These metering pumps have a reliable timing circuit that is almost totally unaffected by temperature, electromagnetic interference, and other electrical disruptions. PULSAtron Series A Plus models have a high-quality solenoid valve and PBT thermoplastic enclosure that help dissipate heat. That allows these pumps to consistently meet their pressure and capacity expectations, even through extended use. They're also water-resistant. All of these performance details mean that PULSAtron A Plus Series are ideal for demanding applications like car washes, outdoor use, and manufacturing environments.

Specifications:

• Maximum Flow: 12 GPD (.5 GPH)
• Maximum Pressure: 150 PSI
• Power Supply: 115 VAC, 50/60 Hz
• Maximum Viscosity: 1000 cps
• Maximum Strokes/Minute: 125
• Flow Control: Dual Manual Control
• Turn Down Ratio: 100:1
• Head/Fittings: GFPPL
• Valve Balls: Ceramic
• Diaphragm: PTFE-faced CSPE
• Valve/Seat/O-ring: TFE
• Connections: 3/8" Tubing

Additional Components Included:

• Weighted foot valve/strainer assembly
• Bleed valve assembly
• 1/2" NPT male injection fitting/back pressure check valve assembly
• 4' suction tubing
• 4' bleed/return tubing
• 8' discharge tubing

PULSAtron Series A Plus Features:

• Manual Control by on-line adjustable stroke rate and stroke length
• Highly reliable timing circuit
• Circuit protection against voltage and current upsets
• Solenoid protection by thermal overload with auto-reset
• Water resistant for outdoor and wet applications
• Internally dampened to reduce noise
• Guided ball check valve system reduces back flow and enhance outstanding priming characteristics.
• Few moving parts
• Capable of being mounted to the wall
• Safe & easy priming with durable leak-free bleed valve assembly (standard)
• Reliable metering performance
• Rated "hot" for continuous duty
• Leak-free, sealless, liquid end
• Easy adjustment using readily accessible dial knobs; one for changing stroke length and the other for changing stroke frequency
• Valve seat and seal ring are renewable by replacing the cartridge valve assembly
