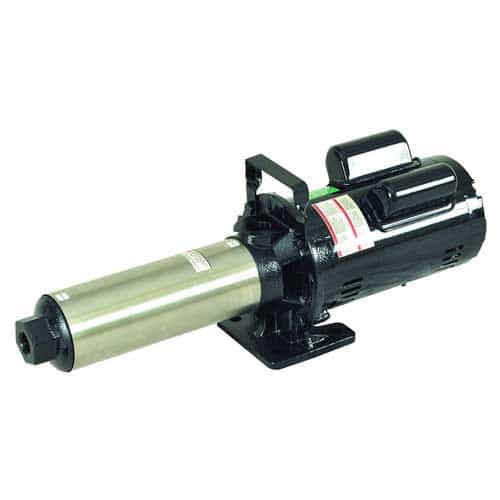

Dayton 45MW74 Multi-Stage Booster Pump, 1 1/2 HP, 1 Phase, 15.5 GPM
Brand:
Mfr. Model #:
45MW74
KR Part #:
45MW74
Weight:
71.00 lbs
GTIN:
190735894910
Availability:
6
Multi-stage booster pump increases pressure from city mains, cisterns and more for proper operation of filtration equipment. Multi-stage design helps to provide steady, quiet, and vibration-free operation. 1.5 horsepower. maximum of 15.5 GPM.
Technical Specifications
Voltage AC: 115/230
Horsepower: 1.5
Amps: 18.4/8.4
Max PSI: 194
Max Temperature: 140 degrees F
Phase: Single
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch
Product Description
Dayton Multi-Stage Booster Pump
Durable, cast iron booster pump features stainless steel wetted materials, carbon/ceramic, Buna-N and Stainless Steel seal materials, and 300 Stainless Steel Rabbit Lock bowls. This provides for steady, quiet, vibration-free operation. Diffusers are glass-filled engineered composite material with a fixed impeller design, for high abrasion and corrosion resistance. 13-stage motor, self-priming to 10 feet when the pump housing and suction line is filled with water and a foot valve is used.
Dimensions: 29 1/2" L x 6 3/4" W x 8 3/4" H
Specifications:
- Horsepower: 1.5 HP
- Max Pressure: 194 PSI
- Max GPM: 15.5 GPM
- Max Temperature: 140° F
- Voltage: 120/240 VAC
- Amps: 18.4/8.4
- Phase: Single
- Inlet/Outlet Size: 3/4" NPT
