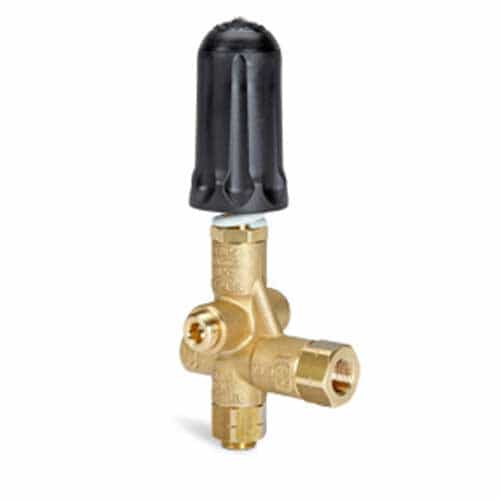

High Temperature Unloader

Engineered to keep the system's pressure setting and protect non-weep single gun and pump systems. Recommended for intermittent cleaning applications and non-weep systems. Utilizes a color-coded (white) spring for identification. Incorporates fluorocarbon (FPM) O-rings to handle high temperatures that reach 240 degrees Fahrenheit.

Specifications:

• Max Flow: 10.5 GPM
• Min Flow: 2.5 GPM
• Max Pressure: 2300 PSI
• Inlet Port Size: 3/8" NPT(F)
• Discharge Port Size: 3/8" NPT(F)
• Accessory Type: Unloaders
• Material: Brass
• By-Pass Port: 3/8" NPT(F)
• Fluorocarbon (FPM): O-Rings
• Maximum Temperatures: 240° F
• Spring: White

Dimensions:

• 7.51 x 3.25 x 1.97"

From CAT Pumps:

• This unloader maintains set system pressure and goes into by-pass with the release of the trigger or an obstruction downstream.
• The pressure sensitive feature permits a wide range of flows and quickly resumes full pressure when the gun is opened or the obstruction cleared.
