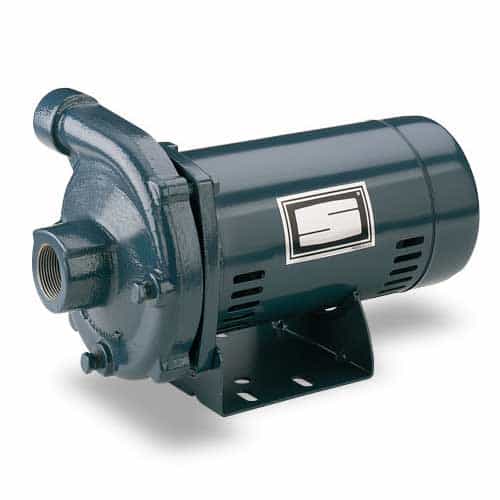

Sta-Rite JBHG-52S Cast Iron Single Phase Centrifugal Pump with High Head - 115/230V, 2 HP, 85 GPM
Brand:
Mfr. Model #:
JBHG-52S
KR Part #:
JBHG-52S
Weight:
48.00 lbs
GTIN:
022315144415
Availability:
1
Low Inventory Get It Today
Single phase, two horsepower centrifugal pump housed in a cast iron body. High head style with a silicon bronze material impeller. Electrical requirements are 2115/230V.
Technical Specifications
Voltage AC: 115/230
Outlet Port: 1 1/4 inch
Inlet Port: 1 1/2 inch
Phase: Single
Max Temperature: 225 degrees F
Max GPM: 84
Horsepower: 2
Max PSI: 130
Product Description
High Temp Centrifugal Pump with Silicon Bronze Impeller
The Sta-Rite JBHG-52S Centrifugal Pump is a cast iron housing pump with a high head and a silicon bronze impeller. This durable centrifugal pump has single-phase operation with 115/230 Volt electrical requirement. Ideal for a variety of heavy-duty water transfer applications including farms, manufacturing facilities, car wash businesses, domestic use, and industrial use.Specifications:
- 2 horsepower
- 115/230 Volt
- 60 Hz
- Single phase
- 1 1/4" NPT discharge port
- 1 1/2" suction port
- 225° Fahrenheit maximum temperature
- 84 GPM maximum flow rate
- 130 PSI maximum total pressure
- Silicon bronze impeller
- Carbon/Ceramic/Buna-N seals
- 25' maximum suction lift
- Cast iron body
- 416 stainless steel motor shaft
Features:
- Drain port for easy winterizing
- Easy serviceability - Replaceable wear ring and a back pull-out design
- Silicon bronze impeller- ideal for high temperatures up to 225° Fahrenheit
Applications:
- Car Wash
- Farm
- Industrial
- Manufacturing
- Heavy-Duty Home Use
- Sprinklers
- Irrigation
UPC:
- 022315144415
