General Pump EZ3030G34UIL EZ Series Left Shaft Pump - 3200 PSI
Brand:
Mfr. Model #:
EZ3030G34UIL
KR Part #:
GPEZ3030G34UIL
Weight:
19.30 lbs
GTIN:
682491141662
Manuals

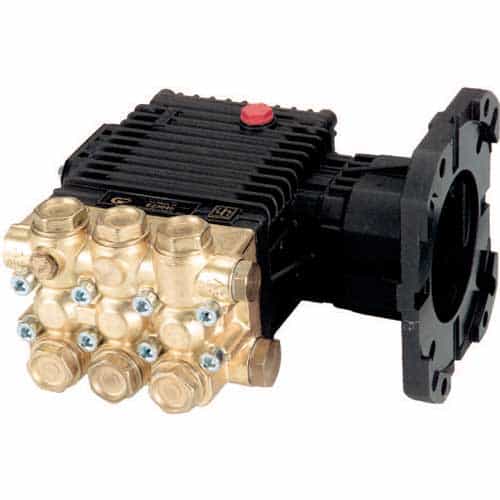

This is an EZ Series triplex plunger pump with unloader and injector. Note: Pump pictured with Right Side Shaft.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Horsepower: 9.9
Inlet Port: 1/2 inch
Max GPM: 3
Max PSI: 3200
RPM: 3400
Max Temperature: 165 degrees F
Stroke: 7.6 millimeter
Shaft Diameter: 25.4 millimeter
Product Description
EZ Series Plunger Pump
The General Pump EZ Series EZ3030G34UIL model is designed with durability in mind! It boasts premium metals and construction so you can rely on it at your busy car wash for many years to come. Experience the benefits of a General Pump at Kleen-Rite's great wholesale prices!
Dimensions: 8.8" X 9.7" X 6.5"
- Unitized stainless steel inlet and discharge valves
- Solid ceramic plungers
- Premium roller bearing
- Die-cast, anodized aluminum, oil-bath crankcase
- Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
- Standard SAE J609 gas mounting flange for up to 13 HP engines
- Weight: 19.1 lbs.
