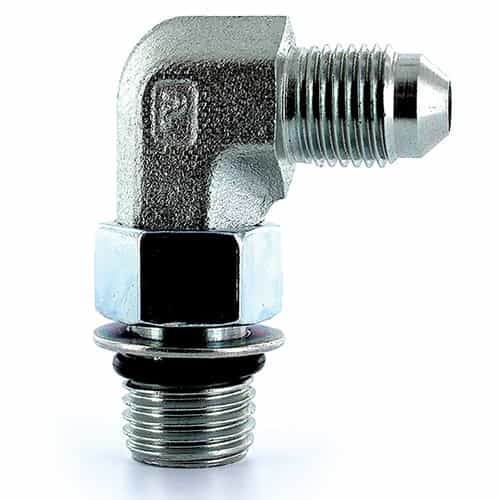

Parker 6C5OX-S Triple-Lok 90 Degree Elbow Tube Fitting - 3/8in. Male JIC x 9/16in. Male SAE

Brand:
Mfr. Model #:
6C5OX-S
KR Part #:
PLF580S
Weight:
0.13 lbs
Usually Ships in 2 Weeks
MSRP
$18.78
Now Only!
$9.03

Steel body Triple-Lok adapter fitting with #6 SAE and JIC 37° connections. Provides a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.




Product Description

#6 Triple-Lok Connector Fitting

Parker's Triple-Lok fittings include three parts: the body, nut, and sleeve. Connections on this 90° elbow adapter include a size 4 SAE end and a JIC end with a flared 37° mating angle. This high-pressure fitting is designed to connect hoses, tubing, and equipment in hydraulic and other fluid systems.

Specifications and Features:

  • Metal to metal seating
  • Blowout proof design
  • Vibration resistance
  • Port Connections: 3/8" SAE Size 6 (9/16-18) x 3/8" male JIC 37° flare
  • 90 Durometer Nitrile seal
  • Material: Steel
  • Maximum Pressure: 6000 PSI
  • Parker part #6C5OX-S
