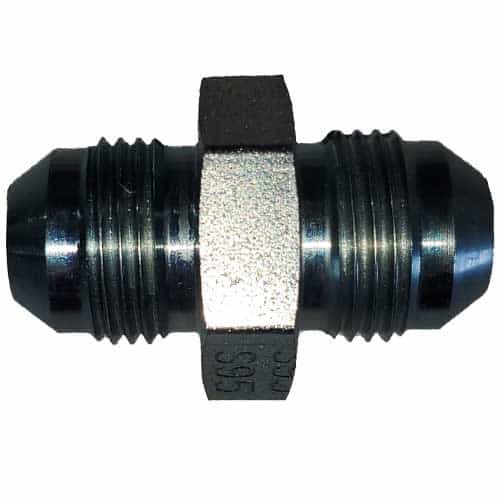

Parker 8LHTX-S Triple-Lok Straight 37 Degree Flare Large Hex Union JIC Fitting - 1/2in. Male JIC

Brand:
Mfr. Model #:
8LHTX-S
KR Part #:
PLF503S-L
Weight:
0.20 lbs
Usually Ships in 2 Weeks
MSRP
$13.87
Now Only!
$6.66
A double sided straight fitting. Features two 37 degree male 37 degree flare connections. Tolerates 6000 PSI. Large 1" hex.



Technical Specifications

Max PSI: 6000
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch

Product Description

High Pressure Flare Large Hex Adaptor

The Parker 8 HLHTX-S is a Triple-Lok JIC Tub fitting designed with a male 37 degree flare connection on both ends. The 37 degree flare connection delivers leak-free metal-to-metal connections when used with flared piping and tubing. Handles hydraulic fluid under high pressures. Made with a steel construction that withstands a maximum pressure of 6000 PSI.
Specifications:
  • Connection Type: 37° Flare, Tube to Tube - Large Hex
  • Hex: 1"
  • Specifications Met: SAE J514
  • Maximum Dynamic Pressure: 6000 PSI
  • Shape: Straight
  • Connection 1 Size: Male 37° Flare
  • Connection 1 Tube Outside Diameter: 1/2 inch, 12 mm
  • Connection 2 Size: Male 37° Flare
  • Connection 2 Tube Outside Diameter: 1/2 inch, 12 mm
  • Material: Steel
Features:
  • Easily adaptable to inch tube, metric tube and hose giving it worldwide acceptance.
  • Steel fittings substantially exceeded the SAE corrosion requirements of 72 hours without red rust, lasting up to 1,000 as found by an independent test facility.
