General Pump EZ2536EL EZ Series 44E Triplex Plunger Pump 3.6 GPM, 2500 PSI, 1750 RPM, Left Shaft
Brand:
Mfr. Model #:
EZ2536EL
KR Part #:
GPEZ2536EL
Weight:
20.60 lbs
Manuals
This EZ Series 44 pump has a 1 1/8" hollow, left shaft and is flanged for direct couple to electric motors (NEMA 184TC).

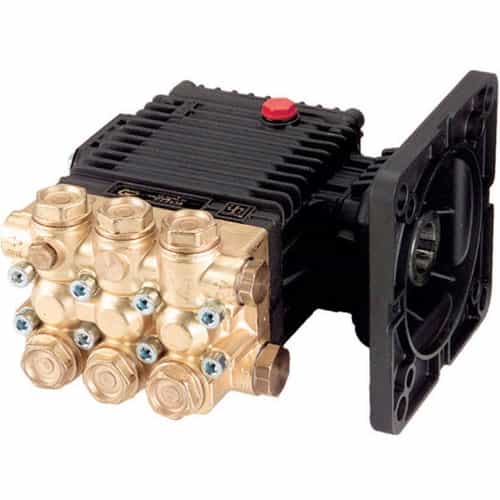

Note: picture shows right shaft, but this is a left hand pump.
Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max GPM: 3.6
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 28.5 millimeter
Stroke: 11 millimeter
Product Description
General Pump EZ Series 44 E Pump
Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 1.125" hollow shaft flanged for direct couple to electric motors (NEMA-184TC).
Dimensions: 8.8" x 8.8" x 6.3"
Features:
- Solid ceramic plungers
- Left shaft
- NEMA 184C mounting flange for electric motors
- Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
- Die-cast, anodized aluminum, oil-bath crankcase
- Premium roller bearing
- Unitized stainless steel inlet and discharge valves
Specifications:
- Maximum Volume: 3.6 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 1750 RPM
- Maximum Fluid Temperature: 165°F
- Inlet Port: 1/2"-14 BSPP-F
- Outlet Port: 3/8"-19 BSPP-F
