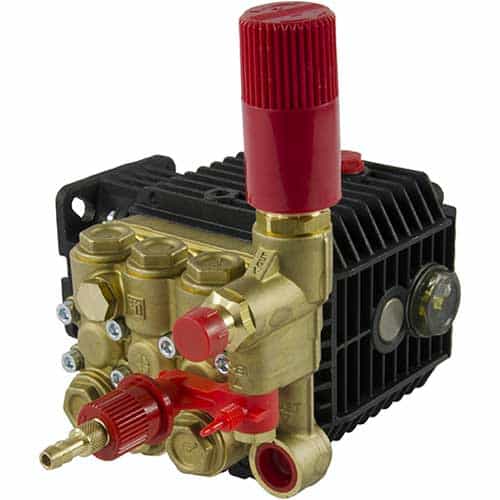

General Pump TT9071GBFUIL Left Shaft TT Series 51 Pump With Unloader and Injector
Brand:
Mfr. Model #:
TT9071GBFUIL
KR Part #:
GPTT9071GBFUIL
Weight:
11.40 lbs
GTIN:
682491142294
Availability:
2
Manuals
The TT Series 51, EBF triplex plunger pump is manufactured with an SAE J609 gasoline engine mounting flange. It has a 3/4" hollow shaft with installed unloader and injector. Left-handed shaft model.
Technical Specifications
Crankcase Capacity: 11.2 oz.
Inlet Port: 3/8 inch
Max GPM: 2.8
Max PSI: 1500
Max Temperature: 165 degrees F
RPM: 3400
Product Description
Left Shaft TT Series 51, GBF Triplex Plunger Pump With Unloader & Injector
The TT9071GBFUIL comes standard with an SAE J609 gasoline engine mounting flange as well as an unloader and injector. It has a die-cast anodized aluminum, 11.2 oz. capacity oil-bath crankcase. This TT Series 51 pump has solid ceramic plungers with continuously lubricated packings. The durable, forged brass manifold is backed by General Pump's exclusive lifetime warranty.
Applications:
- The TT9071GBFUI pump is ideal for general cleaning
Pump Dimensions: 7.2" x 7.2" x 5.5"
- Left-handed model
- 2.8GPM, 1500 PSI
- Original interpump unitized, stainless steel K01 inlet and outlet valves
- Maximum Speed: 3400 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water
- Maximum Fluid Temperature: 165 degrees Fahrenheit
- Plunger Bore: .591 inch/ 15mm
- Plunger Stroke: .260 inch/ 6.6mm
- 3/4 inch / 19mm shaft
- Ship Weight: 11.4 lbs.
